Terminal part for manifolds with drain valve and automatic air vent
- Code:RF512
- Material:brass
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description

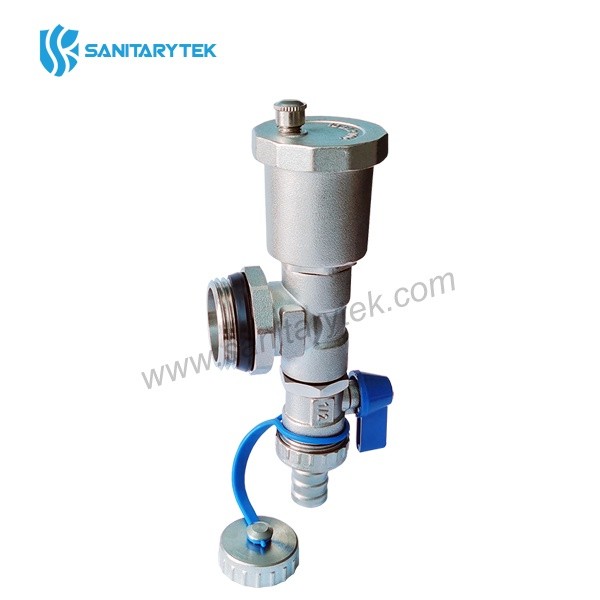

Terminal part for manifolds with automatic air vent and drain ball valve
Adjustable end piece for manifolds with drain ball valve and automatic air vent valve.
• drain ball valve with hose connection, blue or red lever• body in brass
• finishing: nickel plated, available in yellow
• maximum working temperature: 80°C
• max working pressure: 10 bar
• thread: ISO 228
| Code | Size | Handle |
| RF512 | 1" | blue or red |
| RF512 | 1.1/4" | blue or red |
