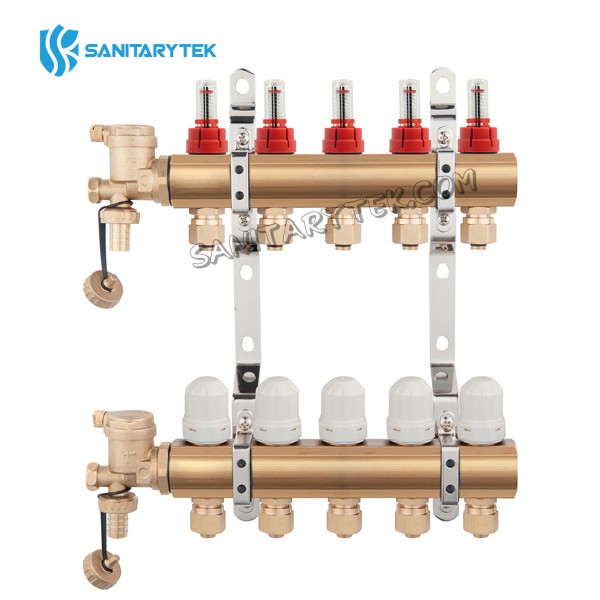

Pre-assembled brass manifolds with flow meters and thermostatic screws
- Code:RF301
- Material:brass
- Type:brass maniflod
Save to favoritesView wishlist
Product Description
Pre-assembled brass manifolds with flow meters and thermostatic screws
| Code | Manifold 1" | Pipe Connection | Finish |
| RF301 | 2-way | 16x2.0 | yellow brass |
| RF301 | 3-way | 16x2.0 | yellow brass |
| RF301 | 4-way | 16x2.0 | yellow brass |
| RF301 | 5-way | 16x2.0 | yellow brass |
| RF301 | 6-way | 16x2.0 | yellow brass |
| RF301 | 7-way | 16x2.0 | yellow brass |
| RF301 | 8-way | 16x2.0 | yellow brass |
| RF301 | 9-way | 16x2.0 | yellow brass |
| RF301 | 10-way | 16x2.0 | yellow brass |
| RF301 | 11-way | 16x2.0 | yellow brass |
| RF301 | 12-way | 16x2.0 | yellow brass |
• Manifold suitable for distributing, interrupting and regulating heat transfer fluids.
- 1 Thermostatic valves on the return bar fitted with knobs for manual regulation with possibility of connecting thermoelectric head
- 1 Flow manifold in yellow brass with flow meters
- 2 G1 automatic air vent and drain units with brass hose connectors
- With 16x2.0 mm multilayer pipe connectors
- Set of steel brackets
• Outlet interaxis: 50mm
• Working temperature: 5-70°C
• Max working pressure: 6 bar.
• Fluids: water or 50% glycol
• Threads: ISO 228.
• Size: 1" x 16x2.0
• Ways: 2~12way
