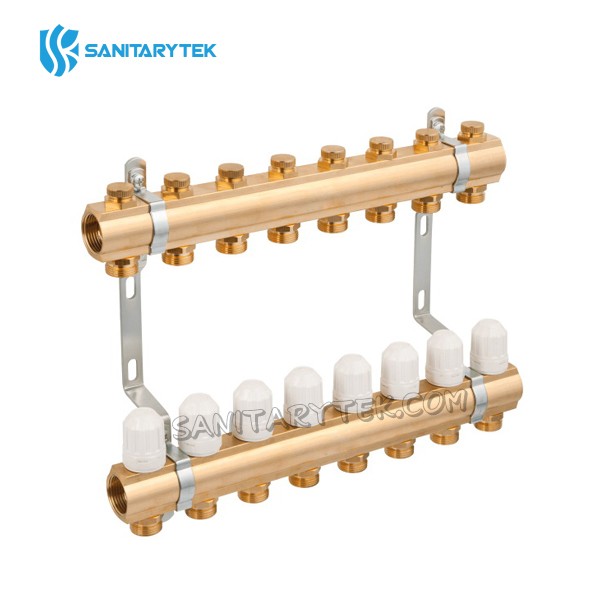

Pre-assembled brass manifolds with lockshields and thermostatic valve
- Code:RF304
- Material:brass
- Type:manifold
Save to favoritesView wishlist
Product Description
Pre-assembled brass manifolds with lockshields and thermostatic valve
| Code | Manifold 1" | Finish |
| RF304 | 2-way | yellow brass |
| RF304 | 3-way | yellow brass |
| RF304 | 4-way | yellow brass |
| RF304 | 5-way | yellow brass |
| RF304 | 6-way | yellow brass |
| RF304 | 7-way | yellow brass |
| RF304 | 8-way | yellow brass |
| RF304 | 9-way | yellow brass |
| RF304 | 10-way | yellow brass |
| RF304 | 11-way | yellow brass |
| RF304 | 12-way | yellow brass |
• FF brass bar manifolds with 3/4" male Euroconus outlets, with thermostatic valves and lockshields.
- 1 thermostatic valves on the return bar fitted with knobs for manual regulation with possibility of connecting thermoelectric head
- 1 flow manifold in nickel-plated brass with lockshields
- Set of steel brackets
• Outlet interaxis: 50mm
• Working temperature: 5-80°C
• Max working pressure: 10 bar.
• Fluids: water or 50% glycol
• Threads: ISO 228.
• Size: 1"x3/4" x 2~12way
