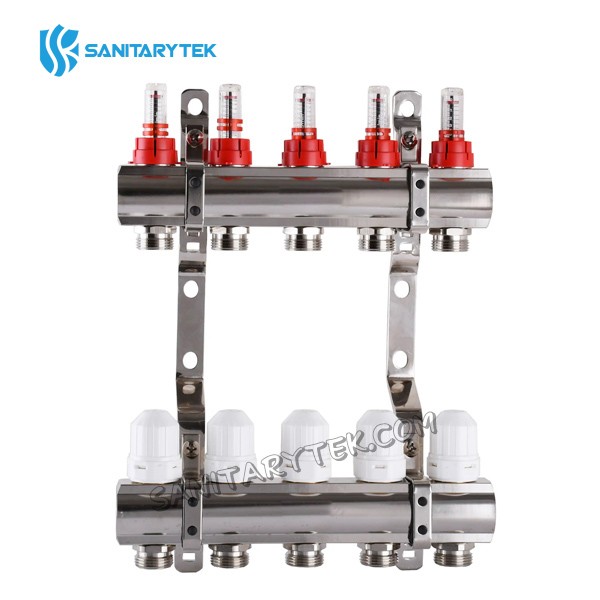

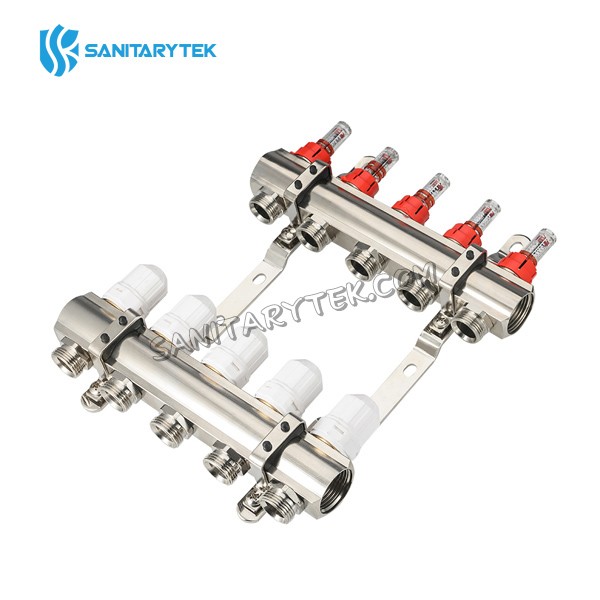

Pre-assembled brass manifolds with flow meters
- Code:RF303
- Material:brass
- Color:nickel plated
- Available sizes:1"
Save to favoritesView wishlist
Product Description
Pre-assembled brass manifolds with flow meters and thermostatic valve
| Code | Manifold 1" | Finish |
| RF303 | 2-way | nickel plated |
| RF303 | 3-way | nickel plated |
| RF303 | 4-way | nickel plated |
| RF303 | 5-way | nickel plated |
| RF303 | 6-way | nickel plated |
| RF303 | 7-way | nickel plated |
| RF303 | 8-way | nickel plated |
| RF303 | 9-way | nickel plated |
| RF303 | 10-way | nickel plated |
| RF303 | 11-way | nickel plated |
| RF303 | 12-way | nickel plated |
• Manifold suitable for distributing, interrupting and regulating heat transfer fluids. This preassembled manifold is composed by flowmeters, flow regulators for balancing circuits and shut-off valves suitable for electro-thermal actuators.
- 1 thermostatic valves on the return bar fitted with knobs for manual regulation with possibility of connecting thermoelectric head
- 1 flow manifold in nickel-plated brass with flow meters
- Set of steel brackets
• Outlet interaxis: 50mm
• Working temperature: 5-70°C
• Max working pressure: 6 bar.
• Fluids: water or 50% glycol
• Threads: ISO 228.
• Size: 1"x3/4" x 2~12way
