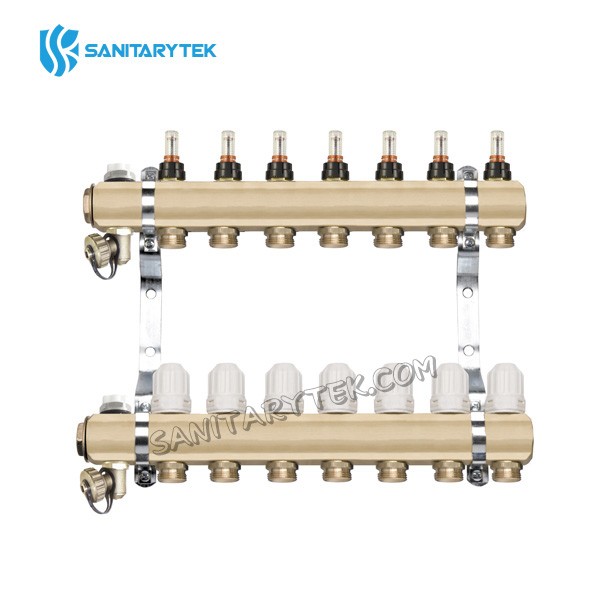

Pre-assembled brass manifolds with flow meters and thermostatic valve
- Code:RF302
- Material:brass
- Type:brass manifold
Save to favoritesView wishlist
Product Description
Pre-assembled brass manifolds with flow meters and thermostatic valve, air vent and drain valves
| Code | Manifold 1" | Finish |
| RF302 | 2-way | yellow brass |
| RF302 | 3-way | yellow brass |
| RF302 | 4-way | yellow brass |
| RF302 | 5-way | yellow brass |
| RF302 | 6-way | yellow brass |
| RF302 | 7-way | yellow brass |
| RF302 | 8-way | yellow brass |
| RF302 | 9-way | yellow brass |
| RF302 | 10-way | yellow brass |
| RF302 | 11-way | yellow brass |
| RF302 | 12-way | yellow brass |
• Manifold suitable for distributing, interrupting and regulating heat transfer fluids.
- 1 thermostatic valves on the return bar fitted with knobs for manual regulation with possibility of connecting thermoelectric head
- 1 flow manifold in yellow brass with flow meters
- Set of steel brackets
- G1/2 manual air vent valve
- G1/2 swivel drain valve
- G1 brass plug
• Outlet interaxis: 50mm
• Working temperature: 5-70°C
• Max working pressure: 6 bar.
• Fluids: water or 50% glycol
• Threads: ISO 228.
• Size: 1"x3/4" x 2~12way
