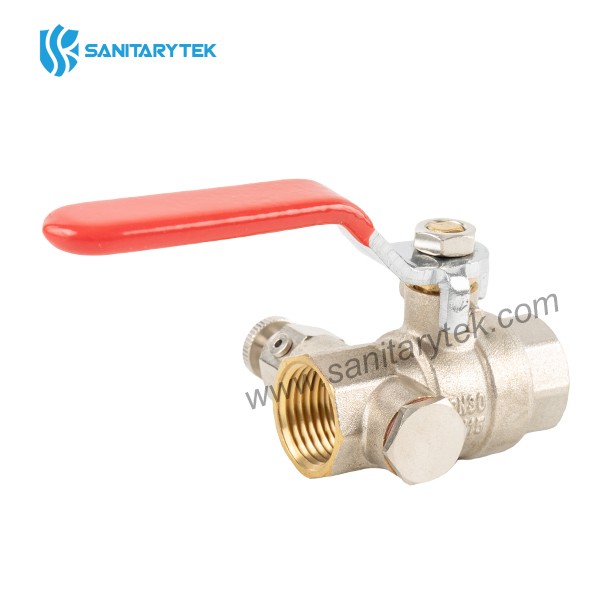

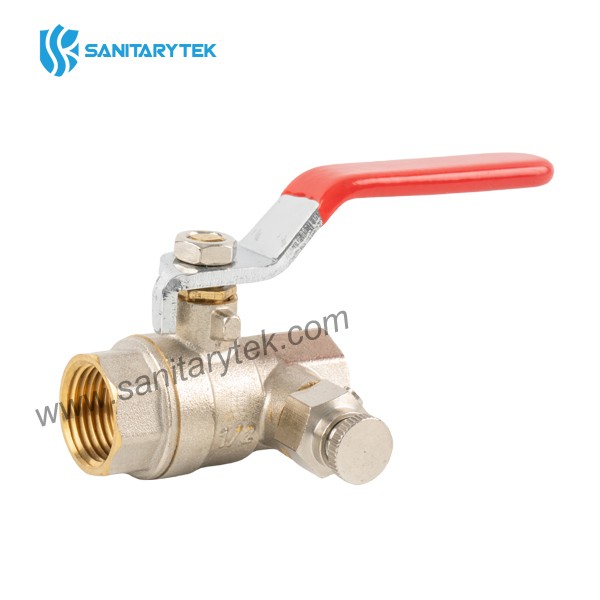

Brass ball valve with drain and plug, with lever,FxF
Code: V20-016D02
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
• Body in nickel-plated brass - inner surfaces are not nickel-plated• female-female
• With gland, PTFE seat and gland packing.
• Steel flat handle (red or blue).
• Nominal pressure: 16 bar (PN16)
• Working temperatures: -10°C to +110°C.
• Working media: water
• Thread: ISO228.
Code | Size |
V20-016D01 | 1/2" |
V20-016D01 | 3/4" |
