Modular distribution manifold with shut-off valve
- Code:RF201
- Material:brass
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description

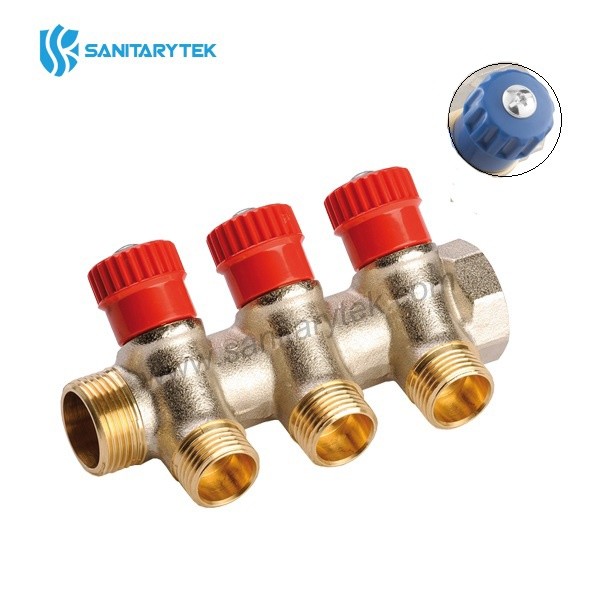

Modular distribution manifold with shut-off valve
Brass manifold with 2, 3 and 4 outlets for water systems with oblique valves• Manifolds with individual shut-off valves on the manifold outlets to isolate individual pipe runs to appliances.
• Suitable for sanitary and heating systems
• Supplied blue / red handwheel
• Max working temperature: 110°C
• Max working pressure: 10bar
• Body in nickel-plated brass
• Inner surfaces are not nickel-plated

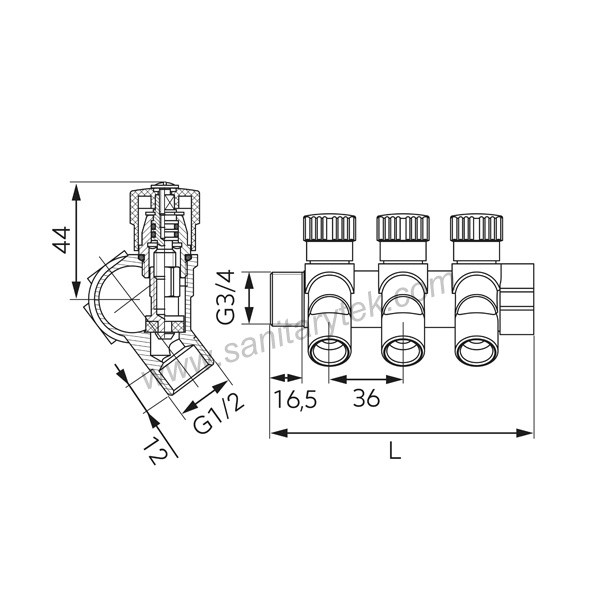

• Centres distance: 36 mm
• 1/2"M outlets
• Threads: ISO 228
| Code | Size |
| RF201 | 3/4”x1/2” - 2-ways |
| RF201 | 3/4”x1/2” - 3-ways |
| RF201 | 3/4”x1/2” - 4-ways |
| RF201 | 1”x1/2” - 2-ways |
| RF201 | 1”x1/2” - 2-ways |
| RF201 | 1”x1/2” - 2-ways |
