Pre-assembled stainless steel manifolds with lockshield
- Code:RF323
- Material:stainless steel
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description

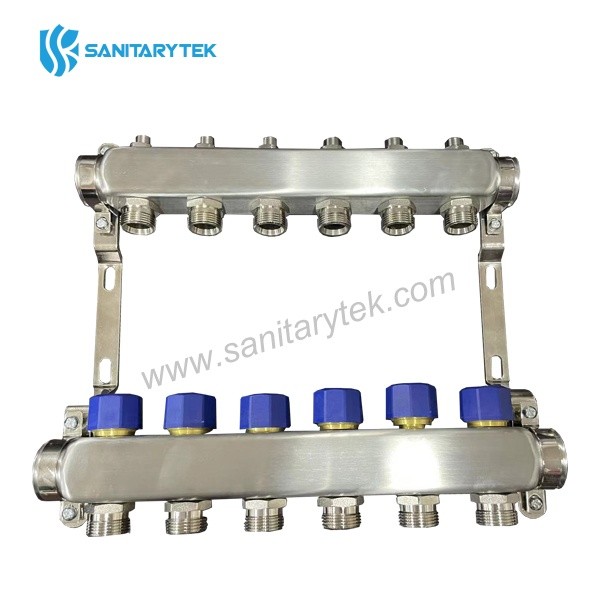

Pre-assembled stainless steel manifolds with lockshield
| Code | Manifold 1" | Outlet |
| RF323 | 2 way | 3/4" |
| RF323 | 3 way | 3/4" |
| RF323 | 4 way | 3/4" |
| RF323 | 5 way | 3/4" |
| RF323 | 6 way | 3/4" |
| RF323 | 7 way | 3/4" |
| RF323 | 8 way | 3/4" |
| RF323 | 9 way | 3/4" |
| RF323 | 10 way | 3/4" |
| RF323 | 11 way | 3/4" |
| RF323 | 12 way | 3/4" |
Pre-assembled manifold in stainless steel, consisting of supply manifold with regulation lockshields and return manifold with thermostatic screws complete with adjustment cap. Outlets with connections 3/4" euroconus.
- 1 return manifold in stainless steel with shut-off valves preset for electrothermal actuators
- 1 flow manifold in stainless steel with lockshields
- set of steel brackets
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• G1/2 x G3/4 nipples
• thread: ISO228
