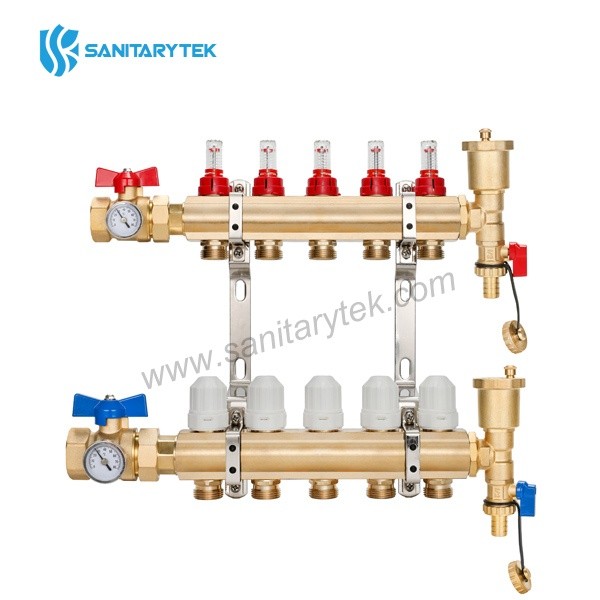

Complete pre-assembled manifold, with thermostatic screw and flow meters
- Code:RF306
- Material:brass
- Finishing:yellow
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description
Complete pre-assembled manifold, with thermostatic screw and flow meters
| Code | Manifold 1" | Finishing |
| RF306 | 2 way | yellow |
| RF306 | 3 way | yellow |
| RF306 | 4 way | yellow |
| RF306 | 5 way | yellow |
| RF306 | 6 way | yellow |
| RF306 | 7 way | yellow |
| RF306 | 8 way | yellow |
| RF306 | 9 way | yellow |
| RF306 | 10 way | yellow |
| RF306 | 11 way | yellow |
| RF306 | 12 way | yellow |
FF brass bar manifolds with 3/4" male Euroconus outlets, with thermostatic screw and flowmeters, Ball valves with thermometer included
• flow meters on the supply bars for regulating flow
• thermostatic valves on the return bar fitted with knobs for manual regulation with possibility of connecting thermoelectric head
• end pieces with air vent valve and drain cock
• set of steel brackets
• Finishing: yellow brass
• thread: ISO228
Mixing group unit without pump
Item No.RF392
