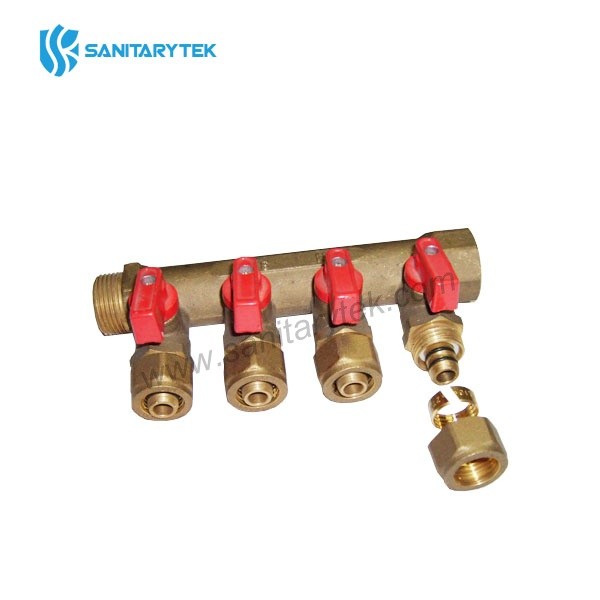

Brass manifold with ball valve with compression exits for multilayer pipe
- Code:RF204
- Material:brass
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description
Brass manifold with ball valve with compression exits for multilayer pipe
• Manifold with mini-valve and lever with compression exits with cut olive for Ø16 multilayer pipe• Supplied blue / red handle
• Max working temperature: 110°C
• Max working pressure: 10bar
• Body in yelow brass
• Centres distance: 36 mm
• Threads: ISO 228
| Code | Size |
| RF204 | 3/4"x16/2.0 - 2-ways |
| RF204 | 3/4"x26/2.0 - 3-ways |
| RF204 | 3/4"x16/2.0 - 4-ways |
| RF204 | 1"x16/2.0 - 2-ways |
| RF204 | 1"x16/2.0 - 3-ways |
| RF204 | 1"x16/2.0 - 4-ways |
