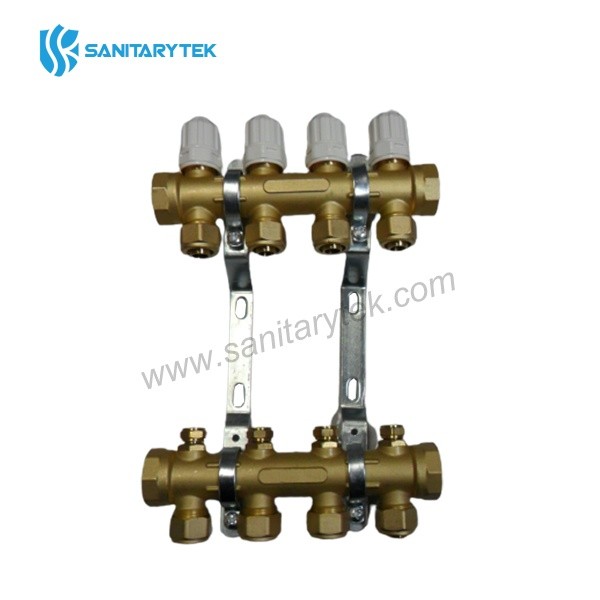

Brass manifold floor heating for Pex pipe
- Code:RF305
- Material:brass
- Finishing:yellow
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description
Brass manifold floor heating for Pex-al pipe
| Code | Manifold 1" | Pipe Connection |
| RF305 | 2 way | 16x2.0 |
| RF305 | 3 way | 16x2.0 |
| RF305 | 4 way | 16x2.0 |
| RF305 | 5 way | 16x2.0 |
| RF305 | 6 way | 16x2.0 |
| RF305 | 7 way | 16x2.0 |
| RF305 | 8 way | 16x2.0 |
| RF305 | 9 way | 16x2.0 |
| RF305 | 10 way | 16x2.0 |
| RF305 | 11 way | 16x2.0 |
| RF305 | 12 way | 16x2.0 |

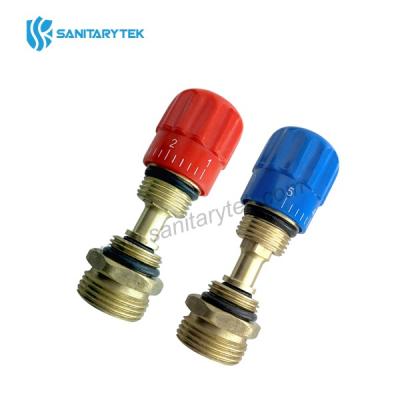

• thermostatic valve on the return bar fitted with knobs for manual regulation with possibility of connecting thermoelectric head
• lockshield valve on the supply
• 16 x 2 mm multilayer pipe connectors

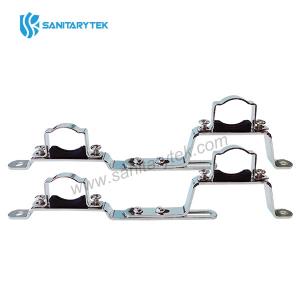

• set of steel brackets
• body in brass
• Finishing: yellow brass
• thread: ISO228
Mixing group unit without pump
Item No.RF392
