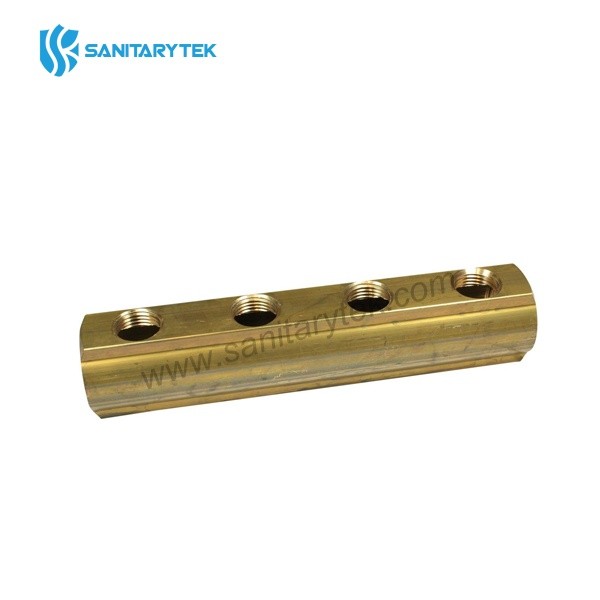

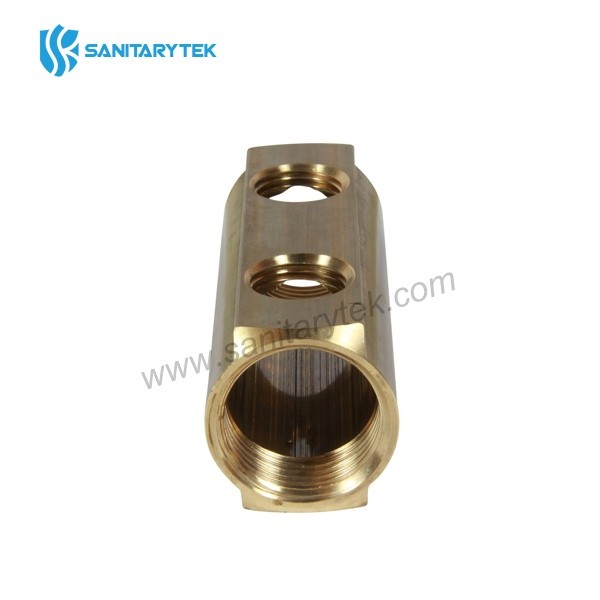

Brass bar manifold with 1/2 female outlets, interaxis 50mm
- Code:RF350
- Material:brass
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description
Brass bar manifold with 1/2 female outlets, Outlet distance 50 mm
• Manifold in drawn brass with 1/2" F. outlets. Outlet distance 50 mm• Body in brass
• Working temperature: 110°C
• Max working pressure: 10 bar
• Thread: ISO228
| Code | Size | Outlet |
| RF350 | 3/4" x 2 | 1/2"F |
| RF350 | 3/4" x 3 | 1/2"F |
| RF350 | 3/4" x 4 | 1/2"F |
| RF350 | 3/4" x 5 | 1/2"F |
| RF350 | 3/4" x 6 | 1/2"F |
| RF350 | 3/4" x 7 | 1/2"F |
| RF350 | 3/4" x 8 | 1/2"F |
| RF350 | 3/4" x 9 | 1/2"F |
| RF350 | 3/4" x 10 | 1/2"F |
| RF350 | 3/4" x 11 | 1/2"F |
| RF350 | 3/4" x 12 | 1/2"F |
| RF350 | 1" x 2 | 1/2"F |
| RF350 | 1" x 3 | 1/2"F |
| RF350 | 1" x 4 | 1/2"F |
| RF350 | 1" x 5 | 1/2"F |
| RF350 | 1" x 6 | 1/2"F |
| RF350 | 1" x 7 | 1/2"F |
| RF350 | 1" x 8 | 1/2"F |
| RF350 | 1" x 9 | 1/2"F |
| RF350 | 1" x 10 | 1/2"F |
| RF350 | 1" x 11 | 1/2"F |
| RF350 | 1" x 12 | 1/2"F |
| RF350 | 1.1/4" x 2 | 1/2"F |
| RF350 | 1.1/4" x 3 | 1/2"F |
| RF350 | 1.1/4" x 4 | 1/2"F |
| RF350 | 1.1/4" x 5 | 1/2"F |
| RF350 | 1.1/4" x 6 | 1/2"F |
| RF350 | 1.1/4" x 7 | 1/2"F |
| RF350 | 1.1/4" x 8 | 1/2"F |
| RF350 | 1.1/4" x 9 | 1/2"F |
| RF350 | 1.1/4" x 10 | 1/2"F |
| RF350 | 1.1/4" x 11 | 1/2"F |
| RF350 | 1.1/4" x 12 | 1/2"F |
