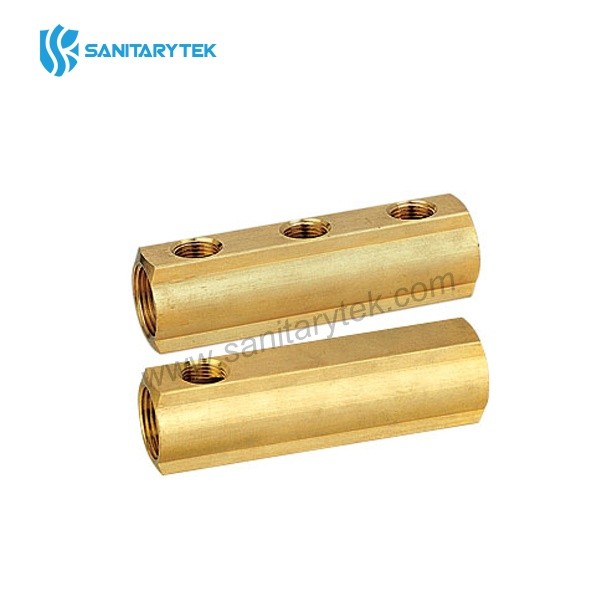

Brass bar manifold with 1/2 female outlets and one drain hole
- Code:RF351
- Material:brass
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description
Brass bar manifold with 1/2 female outlets and one drain hole of 3/8" or 1/2"
• Brass bar manifold with 1/2 female outlets, with drain hole of 3/8"F or 1/2"F, Outlet distance 50 mm• Body in brass
• Working temperature: 110°C
• Max working pressure: 10 bar
• Thread: ISO228
| Code | Size | Drain hole |
| RF351 | 1" x 1/2" x 2 | 3/8" |
| RF351 | 1" x 1/2" x 3 | 3/8" |
| RF351 | 1" x 1/2" x 4 | 3/8" |
| RF351 | 1" x 1/2" x 5 | 3/8" |
| RF351 | 1" x 1/2" x 6 | 3/8" |
| RF351 | 1" x 1/2" x 7 | 3/8" |
| RF351 | 1" x 1/2" x 8 | 3/8" |
| RF351 | 1" x 1/2" x 9 | 3/8" |
| RF351 | 1" x 1/2" x 10 | 3/8" |
| RF351 | 1" x 1/2" x 11 | 3/8" |
| RF351 | 1" x 1/2" x 12 | 3/8" |
| RF351 | 1" x 1/2" x 2 | 1/2" |
| RF351 | 1" x 1/2" x 3 | 1/2" |
| RF351 | 1" x 1/2" x 4 | 1/2" |
| RF351 | 1" x 1/2" x 5 | 1/2" |
| RF351 | 1" x 1/2" x 6 | 1/2" |
| RF351 | 1" x 1/2" x 7 | 1/2" |
| RF351 | 1" x 1/2" x 8 | 1/2" |
| RF351 | 1" x 1/2" x 9 | 1/2" |
| RF351 | 1" x 1/2" x 10 | 1/2" |
| RF351 | 1" x 1/2" x 11 | 1/2" |
| RF351 | 1" x 1/2" x 12 | 1/2" |
