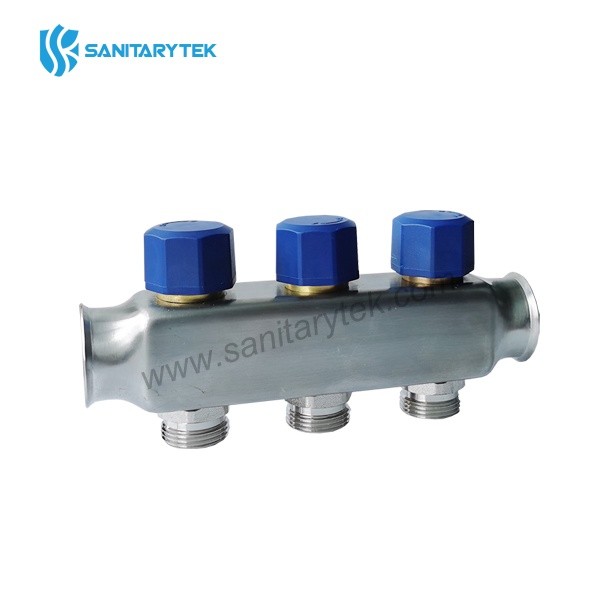

Single manifold in stainless steel with thermostatic valve with protection cap
Code: RF332
Material: stainless steel
Place of origin: Ningbo, China
Product Description
FF stainless steel manifold with 3/4" Euroconus outlets, with thermostatic valves and protection cap
| Code | Size |
| RF332 | 1" x (3/4" x 18) x 2 |
| RF332 | 1" x (3/4" x 18) x 3 |
| RF332 | 1" x (3/4" x 18) x 4 |
| RF332 | 1" x (3/4" x 18) x 5 |
| RF332 | 1" x (3/4" x 18) x 6 |
| RF332 | 1" x (3/4" x 18) x 7 |
| RF332 | 1" x (3/4" x 18) x 8 |
| RF332 | 1" x (3/4" x 18) x 9 |
| RF332 | 1" x (3/4" x 18) x 10 |
| RF332 | 1" x (3/4" x 18) x 11 |
| RF332 | 1" x (3/4" x 18) x 12 |
Single manifold with shut-off valves preset for electrothermal actuators, with protection cap
• Body in stainless steel
• G1/2 x G3/4 nipple
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water
• thread: ISO228
