FF Stainless steel manifolds with thermostatic valves and flow meters
- Code:RF326
- Material:stainless steel
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description

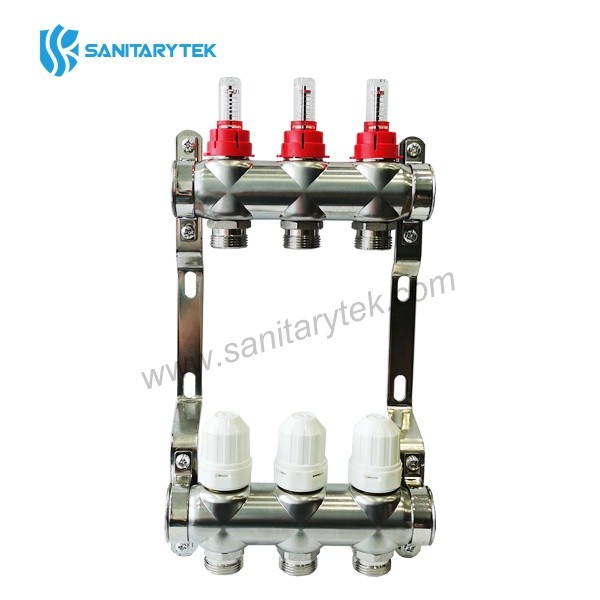

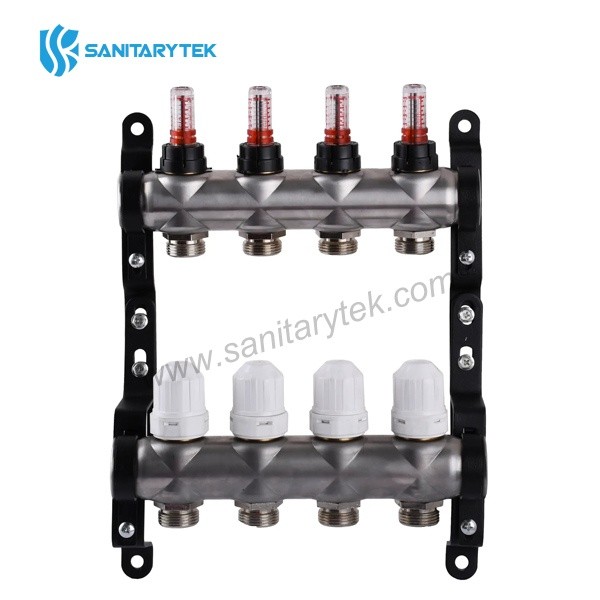

FF Stainless steel manifolds with thermostatic valves and flow meters
| Code | Manifold 1" | Outlet |
| RF326 | 2 way | 3/4" |
| RF326 | 3 way | 3/4" |
| RF326 | 4 way | 3/4" |
| RF326 | 5 way | 3/4" |
| RF326 | 6 way | 3/4" |
| RF326 | 7 way | 3/4" |
| RF326 | 8 way | 3/4" |
| RF326 | 9 way | 3/4" |
| RF326 | 10 way | 3/4" |
| RF326 | 11 way | 3/4" |
| RF326 | 12 way | 3/4" |
Manifold suitable for distributing, interrupting and regulating heat transfer fluids. Pre-assembled manifold in stainless steel, consisting of supply manifold with regulation and balancing flow meters, thermostatic valves on the return bars fitted with knobs for manual regulation with possibility of connecting thermoelectric head. Outlets with connections 3/4" euroconus
- 1 thermostatic valves on the return bars fitted with knobs for manual regulation with possibility of connecting thermoelectric head
- 1 flow meters on supply bars regulating flow
- set of steel brackets
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• G1/2 x G3/4 nipples
• thread: ISO228
