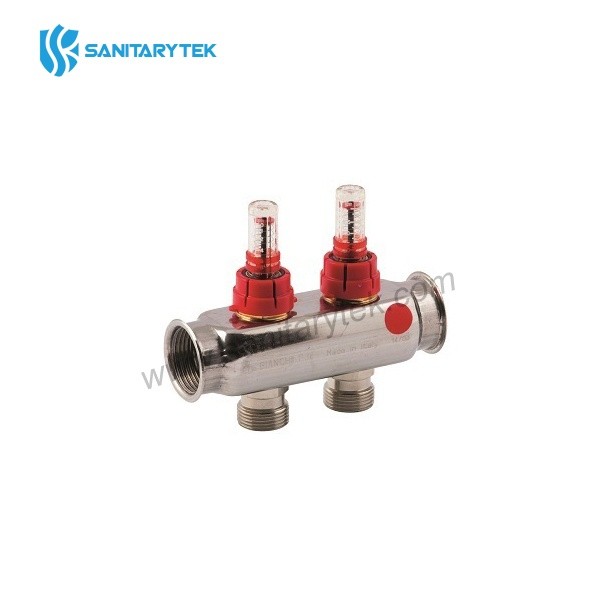

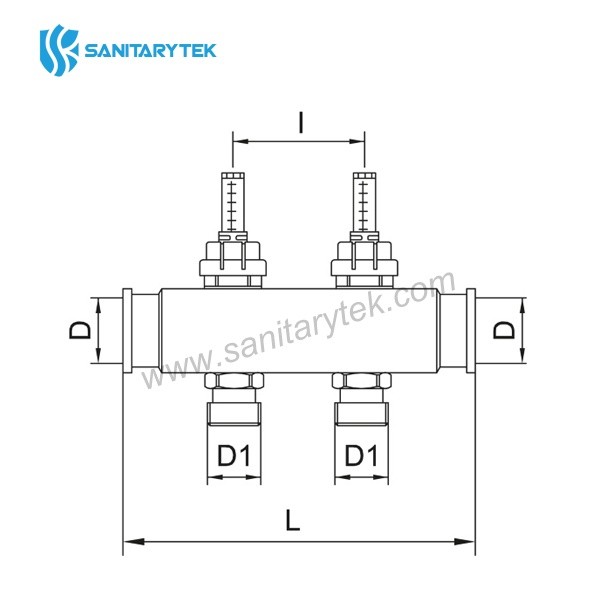

FF Stainless steel manifold with 3/4 euroconus outlets and flow meters
- Code:RF330
- Material:stainless steel
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description
Flow manifold in stainless steel with flow meters with 3/4" euroconus outlets
F/F supply manifold with flow meters• Body in stainless steel
• G1/2 x G3/4 nipple
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water
• thread: ISO228
| Code | Size |
| RF330 | 1" x (3/4" x 18) x 2 |
| RF330 | 1" x (3/4" x 18) x 3 |
| RF330 | 1" x (3/4" x 18) x 4 |
| RF330 | 1" x (3/4" x 18) x 5 |
| RF330 | 1" x (3/4" x 18) x 6 |
| RF330 | 1" x (3/4" x 18) x 7 |
| RF330 | 1" x (3/4" x 18) x 8 |
| RF330 | 1" x (3/4" x 18) x 9 |
| RF330 | 1" x (3/4" x 18) x 10 |
| RF330 | 1" x (3/4" x 18) x 11 |
| RF330 | 1" x (3/4" x 18) x 12 |
