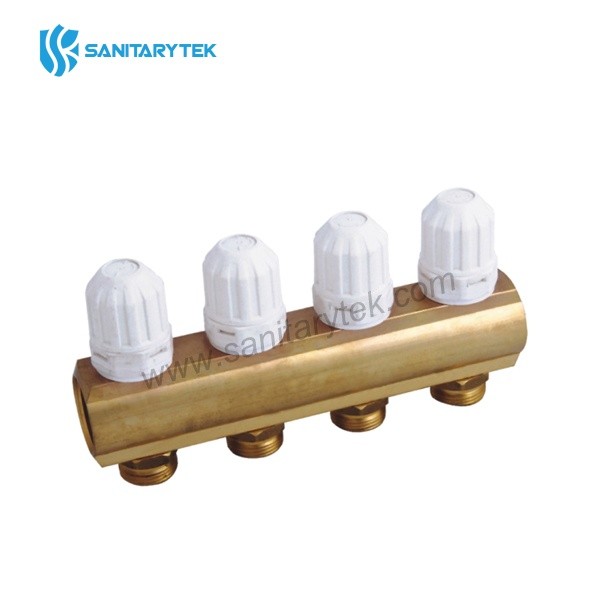

F/F return brass manifold with thermostatic valves with regulating handle
Code: RF311
Material: brass
Place of origin: Ningbo, China
Product Description
F/F Return brass manifold with 3/4" M Euroconus outlets, with thermostatic valves with regulating handle
| Code | Size |
| RF311 | 1" x (3/4" x 18) x 2 |
| RF311 | 1" x (3/4" x 18) x 3 |
| RF311 | 1" x (3/4" x 18) x 4 |
| RF311 | 1" x (3/4" x 18) x 5 |
| RF311 | 1" x (3/4" x 18) x 6 |
| RF311 | 1" x (3/4" x 18) x 7 |
| RF311 | 1" x (3/4" x 18) x 8 |
| RF311 | 1" x (3/4" x 18) x 9 |
| RF311 | 1" x (3/4" x 18) x 10 |
| RF311 | 1" x (3/4" x 18) x 11 |
| RF311 | 1" x (3/4" x 18) x 12 |
| RF311 | 1.1/4" x (3/4" x 18) x 2 |
| RF311 | 1.1/4" x (3/4" x 18) x 3 |
| RF311 | 1.1/4" x (3/4" x 18) x 4 |
| RF311 | 1.1/4" x (3/4" x 18) x 6 |
| RF311 | 1.1/4" x (3/4" x 18) x 7 |
| RF311 | 1.1/4" x (3/4" x 18) x 8 |
| RF311 | 1.1/4" x (3/4" x 18) x 9 |
| RF311 | 1.1/4" x (3/4" x 18) x 10 |
| RF311 | 1.1/4" x (3/4" x 18) x 11 |
| RF311 | 1.1/4" x (3/4" x 18) x 12 |
• Body in brass
• G1/2 x G3/4 nipple
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• thread: ISO228
