FF brass manifold with 3/4
- Code:RF312
- Material:brass
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description

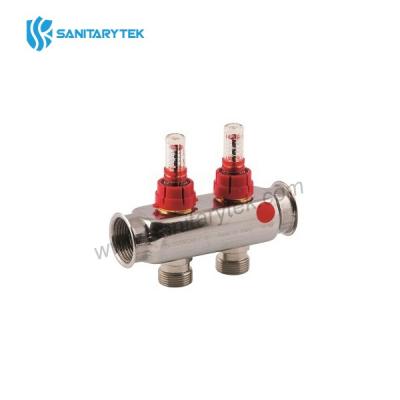

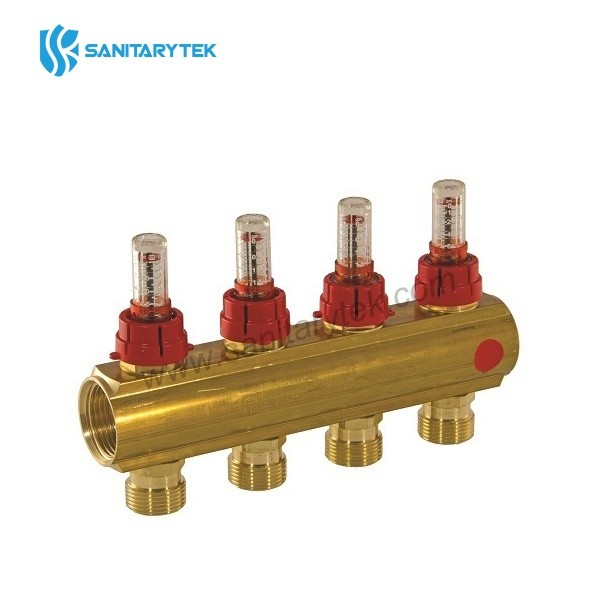

F/F Brass manifold with 3/4" M Euroconus outlets, with flow meters
| Code | Size |
| RF312 | 1" x (3/4" x 18) x 2 |
| RF312 | 1" x (3/4" x 18) x 3 |
| RF312 | 1" x (3/4" x 18) x 4 |
| RF312 | 1" x (3/4" x 18) x 5 |
| RF312 | 1" x (3/4" x 18) x 6 |
| RF312 | 1" x (3/4" x 18) x 7 |
| RF312 | 1" x (3/4" x 18) x 8 |
| RF312 | 1" x (3/4" x 18) x 9 |
| RF312 | 1" x (3/4" x 18) x 10 |
| RF312 | 1" x (3/4" x 18) x 11 |
| RF312 | 1" x (3/4" x 18) x 12 |
| RF312 | 1.1/4" x (3/4" x 18) x 2 |
| RF312 | 1.1/4" x (3/4" x 18) x 3 |
| RF312 | 1.1/4" x (3/4" x 18) x 4 |
| RF312 | 1.1/4" x (3/4" x 18) x 6 |
| RF312 | 1.1/4" x (3/4" x 18) x 7 |
| RF312 | 1.1/4" x (3/4" x 18) x 8 |
| RF312 | 1.1/4" x (3/4" x 18) x 9 |
| RF312 | 1.1/4" x (3/4" x 18) x 10 |
| RF312 | 1.1/4" x (3/4" x 18) x 11 |
| RF312 | 1.1/4" x (3/4" x 18) x 12 |
Flow manifold in drawn brass with flow meters to measure and control the flow in various 3/4" eurocone outlets. With incorporated interceptor lockshields Outlet distance 50mm.
• Body in brass
• G1/2 x G3/4 nipple
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water
• thread: ISO228
Mixing group unit without pump
Item No.RF392
