Double elbow fitting for multilayer pipe, nickel plated

Code: F01-203

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

Double Elbow Fitting - Compression fittings for multilayer pipe

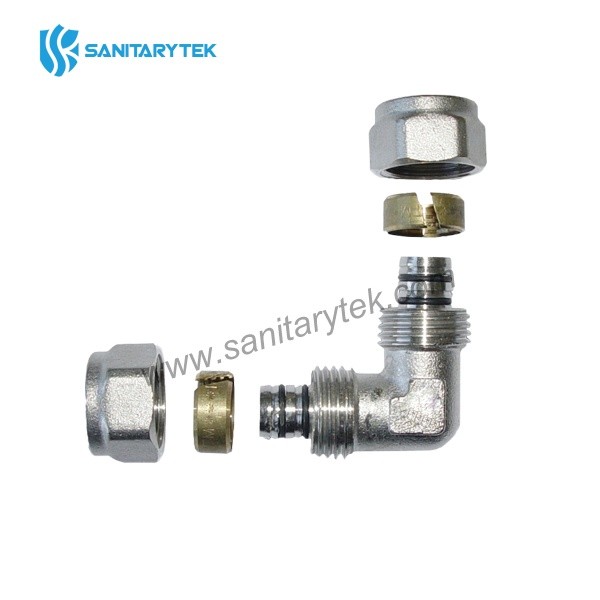

This elbow is a brass compression joint that allows the connection of two polyethylene, multi-layered pipes, with a 90° right-angle pipe path change. It consists of four parts: an elbow-shaped body that ends with a double inner thread, one accessory with its corresponding sealing rings, a washer and a nut.

Code Size
F01-203 16 x 16 x 2,0
F01-203 18 x 18 x 2,0
F01-203 20 x 20 x 2,0
F01-203 25 x 25 x 2,5
F01-203 26 x 26 x 3,0
F01-203 32 x 32 x 3,0
-- --
F01-203R 16(2,0) x 20(2,0)
F01-203R 25(2,5) x 16(2,0)

• Double elbow compression fitting
• Double O-rings ensure excellent sealing characteristics
• Removable and reusable
• Material: brass
• Finishing: nickel plated
• Threaded: ISO 228


Installation Instruction


• To avoid incorrect assembly, you should check the dimensions of the components before installation.
• Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
• Deburr and calibrate the internal surface of the pipe with appropriate tools.
• Fit the nut, the lock ring on the pipe sequentially.
• Fit the O-rings on the body.
• Insert the pipe with the components on the body up to the mechanical stop.
• Tighten the nut by hand first, then using tool tighten the nut.
