• Double straight fitting for multilayer pipe, nickel plated
Double straight fitting for multilayer pipe, nickel plated close left right

Double straight fitting for multilayer pipe, nickel plated

Code: F01-103

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

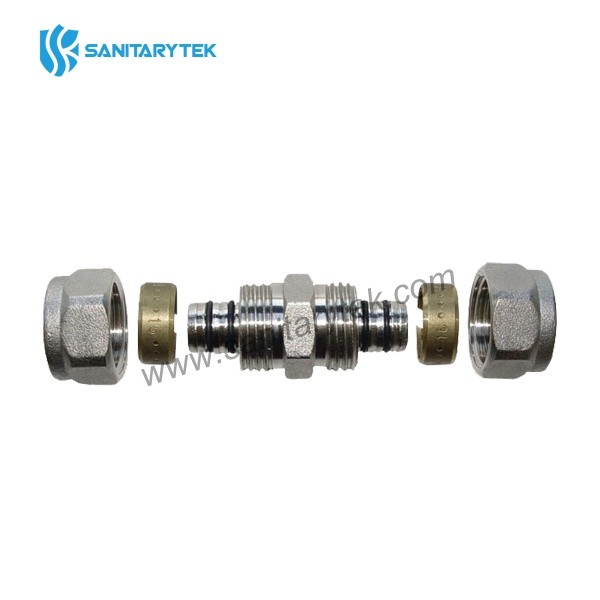

Double Straight Fitting - Compression fittings for multilayer pipe


Double straight fitting for multilayer pipe (pex-Al-pex), for pipes of the same size.

Code Size
F01-103 16 x 16 x 2,0
F01-103 18 x 18 x 2,0
F01-103 20 x 20 x 2,0
F01-103 25 x 25 x 2,5
F01-103 26 x 26 x 3,0
F01-103 32 x 32 x 3,0
-- --
F01-103R 16(2,0) x 20(2,0)
F01-103R 25(2,5) x 16(2,0)
F01-103R 26(3,0) x 16(2,0)
F01-103R 26(3,0) x 20(2,0)
F01-103R 32(3,0) x 26(3,0)

• Double straight compression fitting
• Double O-rings ensure excellent sealing characteristics
• Removable and reusable
• Material: brass
• Finishing: nickel plated
• Threaded: ISO 228


Installation Instruction


• To avoid incorrect assembly, you should check the dimensions of the components before installation.
• Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
• Deburr and calibrate the internal surface of the pipe with appropriate tools.
• Fit the nut, the lock ring on the pipe sequentially.
• Fit the O-rings on the body.
• Insert the pipe with the components on the body up to the mechanical stop.
• Tighten the nut by hand first, then using tool tighten the nut.
