Female straight fitting for multilayer pipe, nickel plated
Code: F01-102
Material: brass
Place of origin: Ningbo, China
Sample: Support
Female Straight Fitting - Compression fittings for multilayer pipe

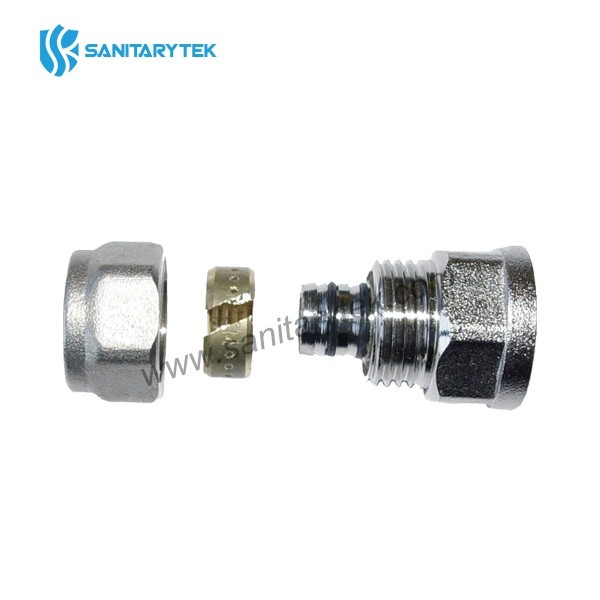

Female straight fitting for multilayer pipe, connecting a multilayer pipe (pex-Al-pex) on an end with a threaded male point on the other.
Code | Size |
F01-102 | 3/8" x 16 x 2,0 |
F01-102 | 1/2" x 16 x 2,0 |
F01-102 | 1/2" x 18 x 2,0 |
F01-102 | 1/2" x 20 x 2,0 |
F01-102 | 3/4" x 16 x 2,0 |
F01-102 | 3/4" x 18 x 2,0 |
F01-102 | 3/4" x 20 x 2,0 |
F01-102 | 3/4" x 25 x 2,5 |
F01-102 | 3/4" x 26 x 3,0 |
F01-102 | 1" x 26 x 3,0 |
F01-102 | 1" x 32 x 3,0 |
• Female straight compression fitting
• Double O-rings ensure excellent sealing characteristics
• Removable and reusable
• Material: brass
• Finishing: nickel plated
• Threaded: ISO 228
Installation Instruction
• To avoid incorrect assembly, you should check the dimensions of the components before installation.
• Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
• Deburr and calibrate the internal surface of the pipe with appropriate tools.
• Fit the nut, the lock ring on the pipe sequentially.
• Fit the O-rings on the body.
• Insert the pipe with the components on the body up to the mechanical stop.
• Tighten the nut by hand first, then using tool tighten the nut.
