Male straight fitting for multilayer pipe
- Code:F01-3201
- Material:brass
- Place of origin:Ningbo, China
- Sample:Support
Save to favoritesView wishlist
Product Description

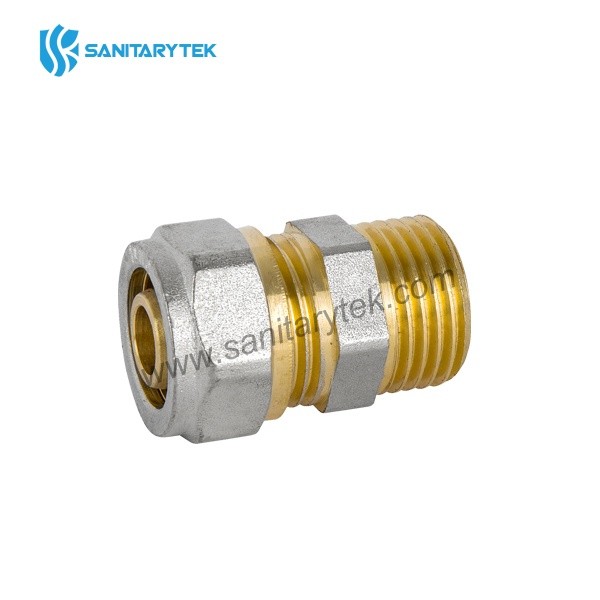

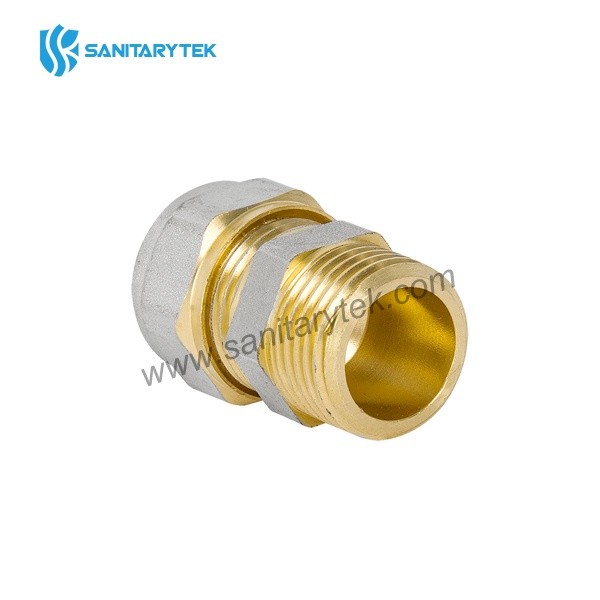

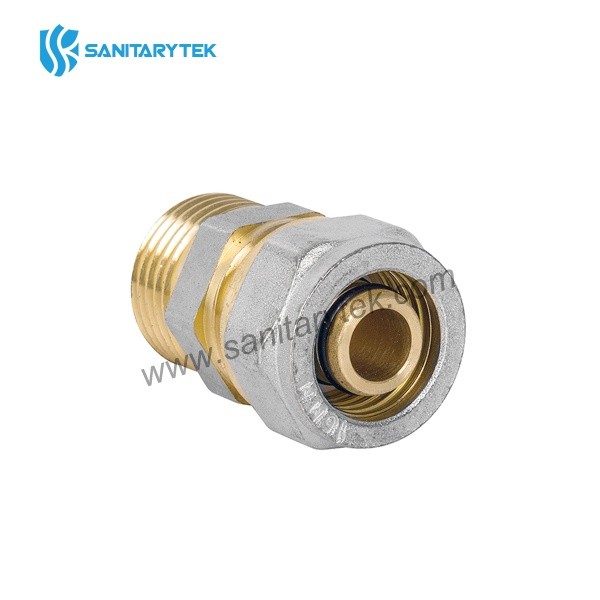

Male Straight Fitting for multilayer pipe
Male straight fitting for multilayer pipe, connecting a multilayer pipe (pex-Al-pex) on an end with a threaded female point on the other.

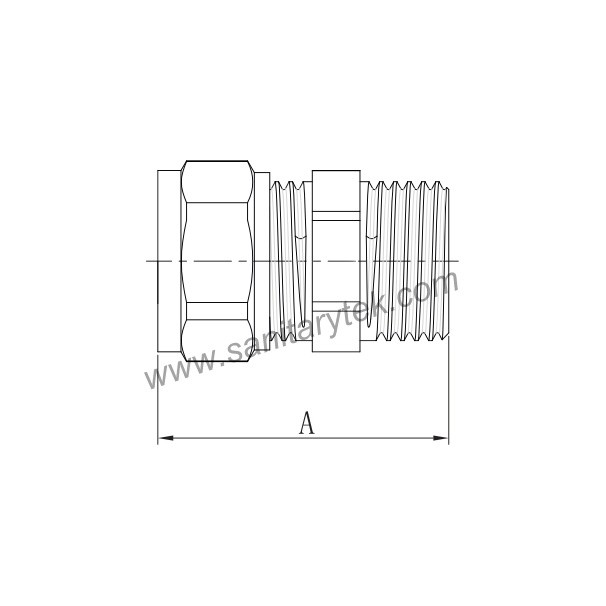

| Code | Size |
| F01-3201 | 3/8" x 16 x 2,0 |
| F01-3201 | 1/2" x 16 x 2,0 |
| F01-3201 | 1/2" x 18 x 2,0 |
| F01-3201 | 1/2" x 20 x 2,0 |
| F01-3201 | 3/4" x 16 x 2,0 |
| F01-3201 | 3/4" x 18 x 2,0 |
| F01-3201 | 3/4" x 20 x 2,0 |
| F01-3201 | 3/4" x 25 x 2,5 |
| F01-3201 | 3/4" x 26 x 3,0 |
| F01-3201 | 1" x 26 x 3,0 |
| F01-3201 | 1" x 32 x 3,0 |
• Male straight compression fitting
• Double O-rings ensure excellent sealing characteristics
• Removable and reusable
• Material: brass
• Finishing: nickel plated (thread surfaces are not nickel-plated)
• Threaded: ISO 228
Installation Instruction
• To avoid incorrect assembly, you should check the dimensions of the components before installation.
• Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
• Deburr and calibrate the internal surface of the pipe with appropriate tools.
• Fit the nut, the lock ring on the pipe sequentially.
• Fit the O-rings on the body.
• Insert the pipe with the components on the body up to the mechanical stop.
• Tighten the nut by hand first, then using tool tighten the nut.
