Female tee fitting for multilayer pipe, nickel plated

  • Code:F01-302A
  • Material:brass
  • Place of origin:Ningbo, China
  • Sample:Support
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

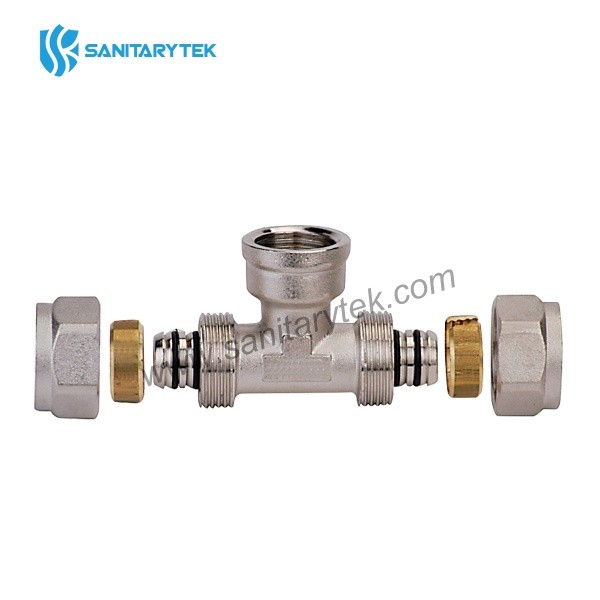

    Female Tee Fitting for multilayer pipe


    Brass compression fitting for polyethylene and multilayer pipes, with a branch male thread. It allows to join two polyethylene and multilayer pipes, with a branch by the side with external thread.

    Code Size
    F01-302A 16 x1/2"x16 x 2,0
    F01-302A 18x1/2"x18 x 2,0
    F01-302A 20x1/2"x20 x 2,0
    F01-302A 20x3/4"x20 x 2,0
    F01-302A 26x3/4"x26 x 3,0
    F01-302A 26x1"x26 x 3,0
    F01-302A 32x1"x32 x 3,0

    • Female tee fitting
    • Double O-rings ensure excellent sealing characteristics
    • Removable and reusable
    • Material: brass
    • Finishing: nickel plated
    • Threaded: ISO 228


    Installation Instruction


    • To avoid incorrect assembly, you should check the dimensions of the components before installation.
    • Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
    • Deburr and calibrate the internal surface of the pipe with appropriate tools.
    • Fit the nut, the lock ring on the pipe sequentially.
    • Fit the O-rings on the body.
    • Insert the pipe with the components on the body up to the mechanical stop.
    • Tighten the nut by hand first, then using tool tighten the nut.
