• Double wallplate female elbow fitting
Double wallplate female elbow fitting close left right

Double wallplate female elbow fitting

Code: F01-502B

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

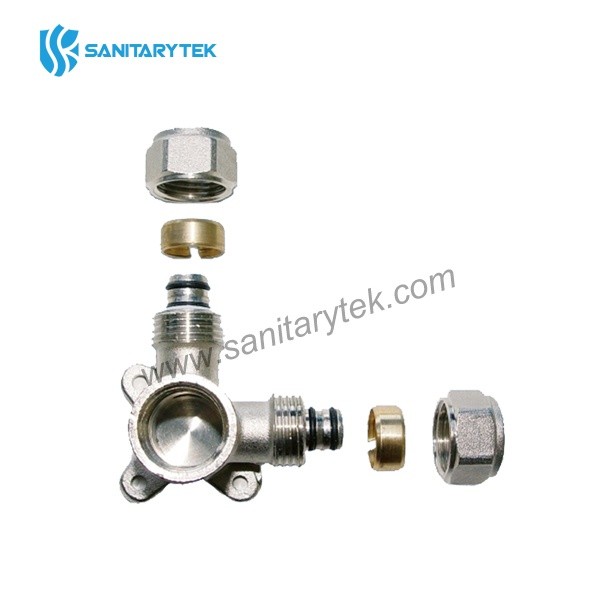

Double Wallplate Female Elbow Fitting

Double wall-plate elbow female for multilayer pipe (pex-Al-pex). used to connect metal-plastic pipes with threaded-end circuit component.

Code Size
F01-502B 1/2" x 16 x 16 x 2,0
F01-502B 1/2" x 18 x 18 x 2,0

• Wallplate female elbow fitting for pex-al-pex pipe
• Double O-rings ensure excellent sealing characteristics
• Removable and reusable
• Material: brass
• Finishing: nickel plated
• Threaded: ISO 228

Installation Instruction

• To avoid incorrect assembly, you should check the dimensions of the components before installation.
• Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
• Deburr and calibrate the internal surface of the pipe with appropriate tools.
• Fit the nut, the lock ring on the pipe sequentially.
• Fit the O-rings on the body.
• Insert the pipe with the components on the body up to the mechanical stop.
• Tighten the nut by hand first, then using tool tighten the nut.
