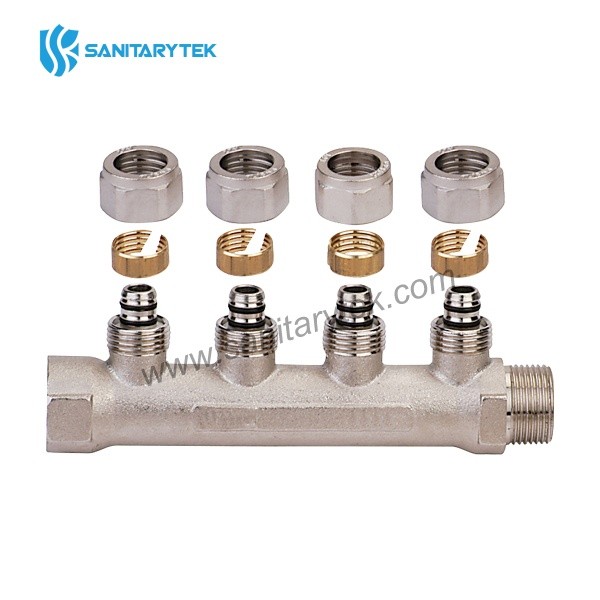

Brass manifolds for multilayer pipe (pex-al-pex)
- Code:F01-743
- Material:brass
- Place of origin:Ningbo, China
- Sample:Support
Save to favoritesView wishlist
Product Description
Linear Manifold for multilayer pipe
Male-female manifold, it is an accessory used for splitting a flow into different branches for a distributor system and used with polyethylene and multilayer pipes.
| Code | Size | Ways |
| F01-743 | 3/4"x16 | 2, 3, 4, 5 |
| F01-743 | 3/4"x18 | 2, 3, 4, 5 |
| F01-743 | 1"x16 | 2, 3, 4, 5 |
• Brass manifold for multilayer pipe (pex-Al-pex)
• Double O-rings ensure excellent sealing characteristics
• Removable and reusable
• Material: brass
• Finishing: nickel plated
• Threaded: ISO 228
Installation Instruction
• To avoid incorrect assembly, you should check the dimensions of the components before installation.
• Cut the pipe perpendicular to its axis, using a shears (you are advised to rotate the shears slightly while you are cutting) or the wheel pipe-cutter.
• Deburr and calibrate the internal surface of the pipe with appropriate tools.
• Fit the nut, the lock ring on the pipe sequentially.
• Fit the O-rings on the body.
• Insert the pipe with the components on the body up to the mechanical stop.
• Tighten the nut by hand first, then using tool tighten the nut.
