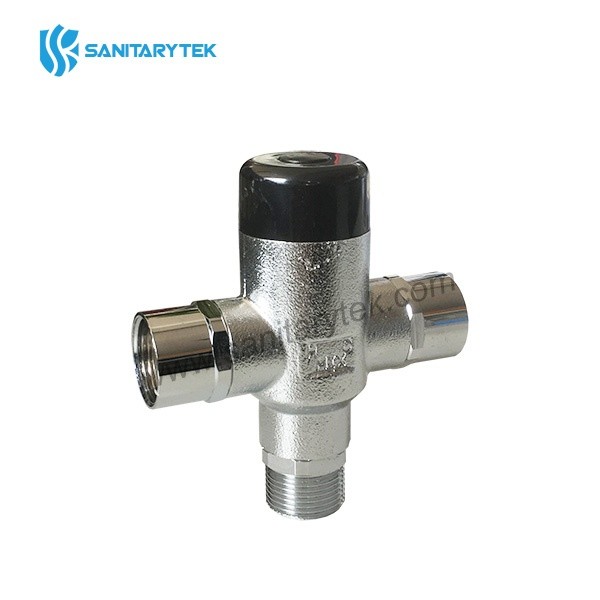

• Thermostatic mixing valve with MF connection
Thermostatic mixing valve with MF connection close left right

Thermostatic mixing valve with MF connection

Code: V21-3302

Material: brass

Finishing: chrome

MOQ: 1000 pcs

Place of origin: Ningbo, China

Product Description

3 Ways termostatic mixing valve with female-male connection

Code Size Finishing
V21-3302 3/4"MF chrome plated

• Body in forged brass
• Minimum working pressure: 2 bar
• maximum working pressure: 10 bar
• Min inlet cold water temperature: 4°C
• Max inlet hot water temperature: 85°C
• Mixed water temperature range: 27°C-55°C
• Fluids: water or glycol solutions (max 30%)
• Finishing: chrome plated
• thread: ISO228

Thermostatic mixing valve with male-female connection and removable cartridge. The main function is to maintain constant to a set value the temperature of the mixed water, regardless the inlet hot and cold water temperature and pressure. Anti-burning function included in case of unexpeted interruption of the inlet cold water supply, avoiding potentials burns and possibility to block the mixed water temperature.
