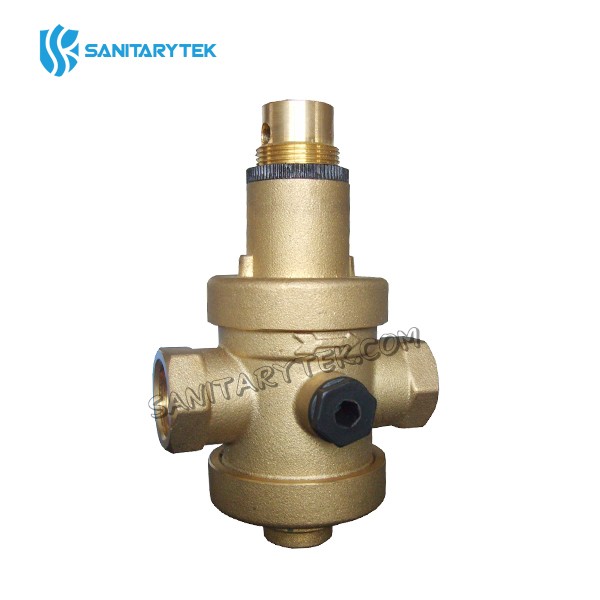

Pressure reducing valve FF connection, manometer holder
Code: V21-3101
Material: Brass
Size: 1/2"-2"
Connection: Female/female threads
MOQ: 1000 pcs
Place of origin: China
Product Description
Pressure Reducing Valve FF connection, manometer holder
| Code | Size |
| V21-3101 | 1/2" |
| V21-3101 | 3/4" |
| V21-3101 | 1" |
| V21-3101 | 11/4" |
| V21-3101 | 11/2" |
| V21-3101 | 2" |
• Pressure reducer with piston and clearing house, female connections and manometer holder
• Body in forged brass
• Finishing: yellow brass
• Stainless steel internal components
• Max. inlet pressure: 25 bar.
• Max working temperature: 80°C
• Pre-setting: 3bar
• Outlet pressure range: 1 - 6 bar (1,5bar – 6bar size >1")
• Manometer connection: 1/4"
• Fluids: water
• Threads: ISO 228
