Pressure reducing valve with pipe union MF
Code: V21-3104
Material: brass
Finishing: yellow brass
MOQ: 1000 pcs
Place of origin: Ningbo, China
Product Description

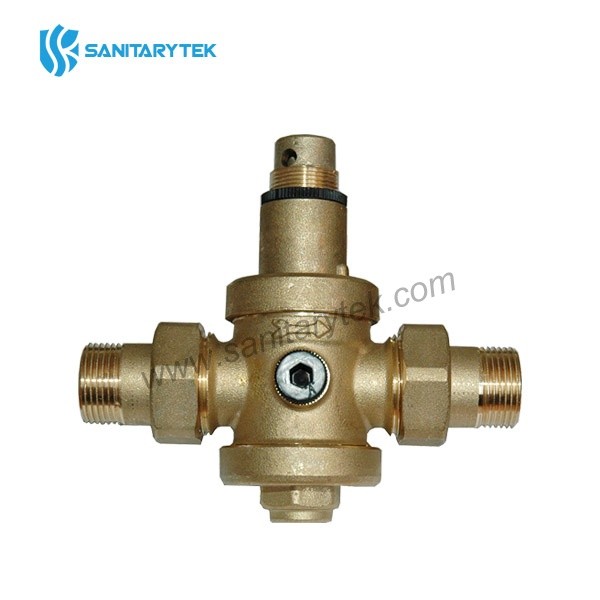

Pressure Reducing Valve with M.M. pipe unions and manometer holder
Water pressure reducing valve made in brass, piston operating and outlet pressure compensation system, brass MM union
• Finishing: yellow brass
• Max working pressure: 25 bar
• Max working temperature: 80°C.
• Outlet pressure range: 1 - 4 bar / factory setting 3 bar
• Manometer connection: 1/4"
• Fluids: water
• Threads: ISO 228
| Code | Size |
| V21-3104 | 1/2" |
| V21-3104 | 3/4" |
| V21-3104 | 1" |
| V21-3104 | 1.1/4" |
| V21-3104 | 1.1/2" |
| V21-3104 | 2" |
