Pressure reducing valve with pipe union FF
- Code:V21-3103
- Material:brass
- Finishing:yellow brass
- MOQ:1000 pcs
- Place of origin:Ningbo, China
MOQ 1000 pcs
Save to favoritesView wishlist
Product Description

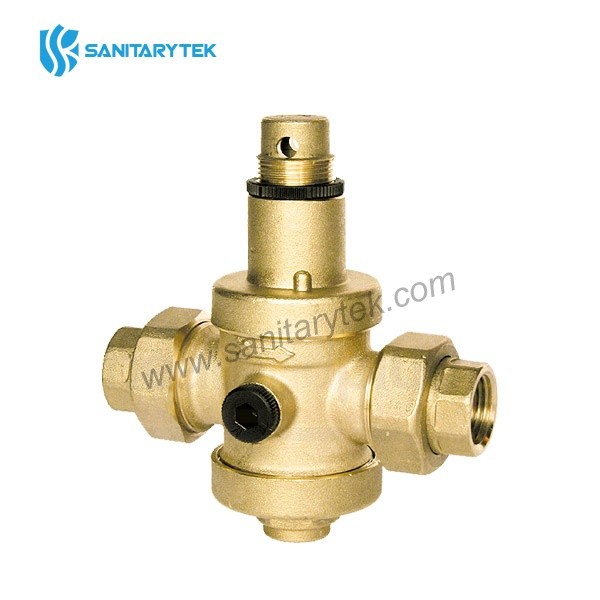

Pressure Reducing Valve with female pipe unions and manometer holder
Water pressure reducing valve made in brass, piston operating and outlet pressure compensation system, stainless steel seat, brass FF union
• Finishing: yellow brass
• Max working pressure: 25 bar
• Max working temperature: 80°C.
• Outlet pressure range: 1 - 4 bar / factory setting 3 bar
• Manometer connection: 1/4"
• Fluids: water
• Threads: ISO 228
| Code | Size |
| V21-3103 | 1/2" |
| V21-3103 | 3/4" |
| V21-3103 | 1" |
| V21-3103 | 1.1/4" |
| V21-3103 | 1.1/2" |
| V21-3103 | 2" |
