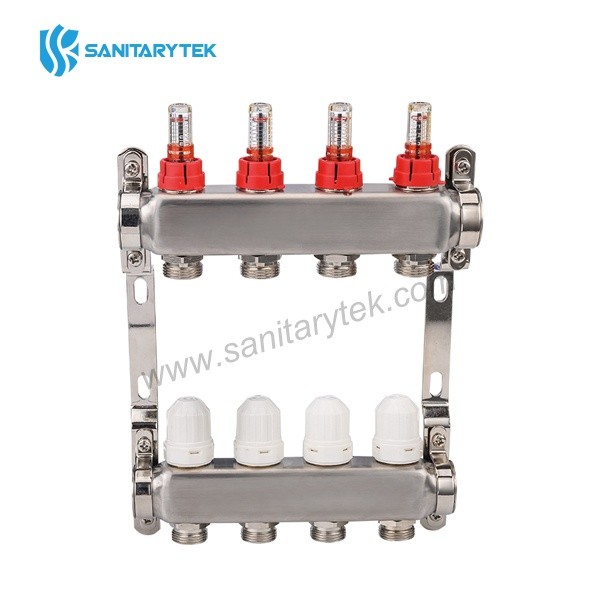

Pre-assembled stainless steel manifolds with flowmeters and thermostatic screws
- Code:RF321
- Material:stainless steel
- Place of origin:Ningbo, China
Save to favoritesView wishlist
Product Description
Pre-assembled stainless steel manifolds with flowmeters and thermostatic screws
| Code | Manifold 1" | Outlet |
| RF321 | 2 way | 3/4" |
| RF321 | 3 way | 3/4" |
| RF321 | 4 way | 3/4" |
| RF321 | 5 way | 3/4" |
| RF321 | 6 way | 3/4" |
| RF321 | 7 way | 3/4" |
| RF321 | 8 way | 3/4" |
| RF321 | 9 way | 3/4" |
| RF321 | 10 way | 3/4" |
| RF321 | 11 way | 3/4" |
| RF321 | 12 way | 3/4" |
FF stainless steel 304 manifolds with 3/4" male Euroconus outlets, with thermostatic valves and flow meters
• set of steel brackets
• Working temperature: 5-70°C
• Max working pressure: 6 bar
• Fluids: water or glycol solutions (max 30%)
• Suitable for fittings for copper, PEX or multilayer piping
• thread: ISO228
Mixing group unit without pump
Item No.RF392
