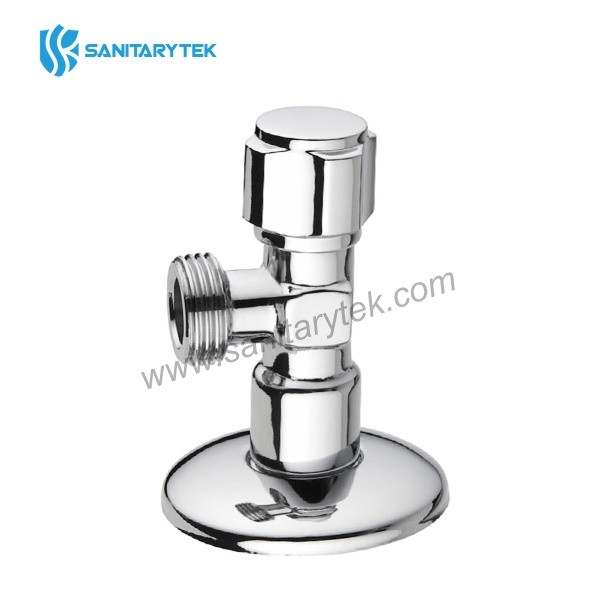

  • Chrome plated angle valve with slide head - Image 1

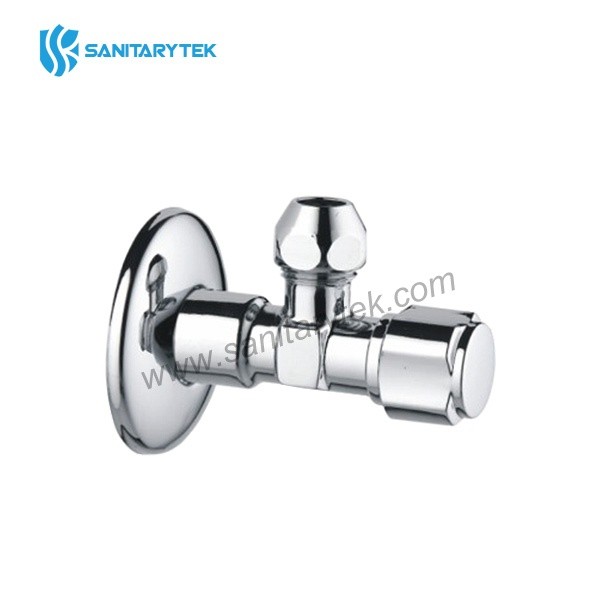

  • Chrome plated angle valve with slide head - Image 2
  • Chrome plated angle valve with slide head - Image 3

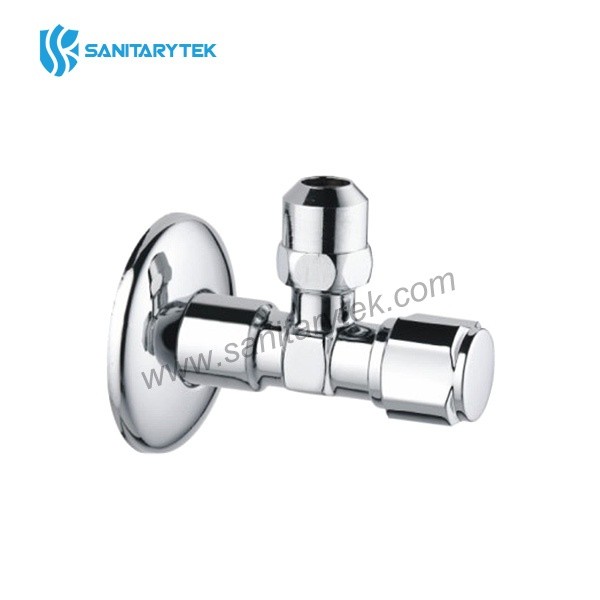

  • Chrome plated angle valve with slide head - Image 4
Chrome plated angle valve with slide headcloseleftright

Chrome plated angle valve with slide head

  • Code:V22-043
  • Material:Brass
  • Finish:Chrome
  • Place of origin:Ningbo,China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

    Chrome plated angle valve with slide head

    This manual angle valve offers a reliable shut-off valve and smooth and accurate flow control. The brass body makes this valve durable, reliable, and ready for a long-service life.

    • body in brass, polished, chrome plated
    • media: water
    • nominal pressure: 1.0 MPa (10 bar)
    • working temperatures: 0°C to +80°C
    • Thread: ISO228
    • Product available: Chrome plated angle valve code V22-043, Chrome plated angle valve with nut code V22-043B


    Code Size
    V22-043 1/2"x1/2"
    V22-043 1/2"x3/8"
    V22-043 1/2"x3/4"

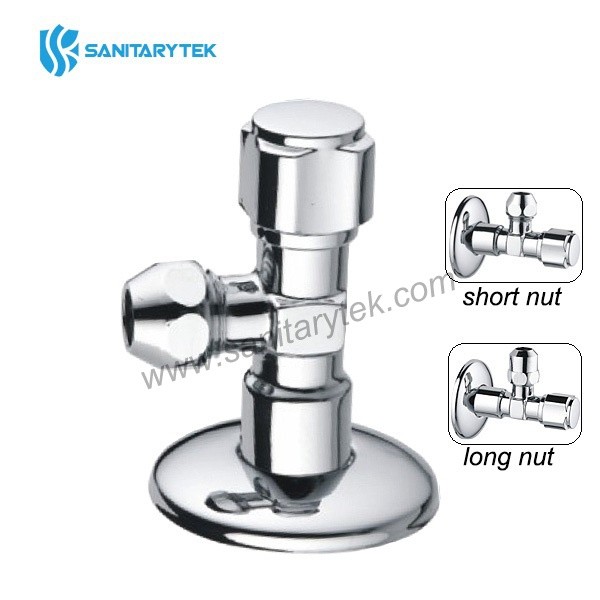

    V22-043B short nut 1/2"x3/8"x10mm
    V22-043B long nut 1/2"x3/8"x10mm
