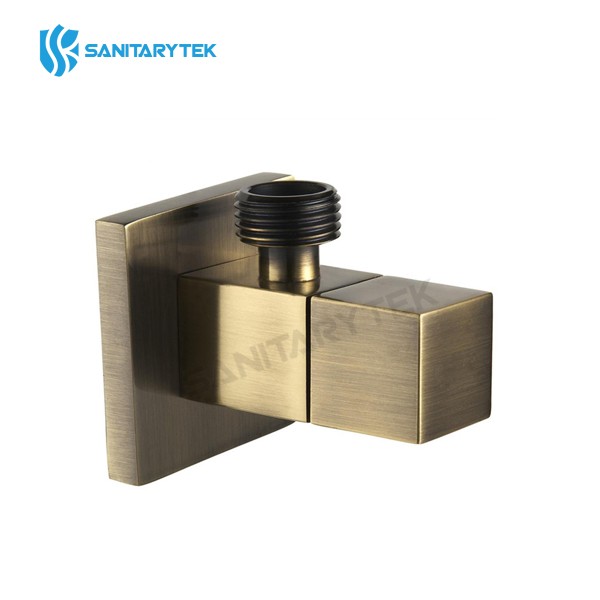

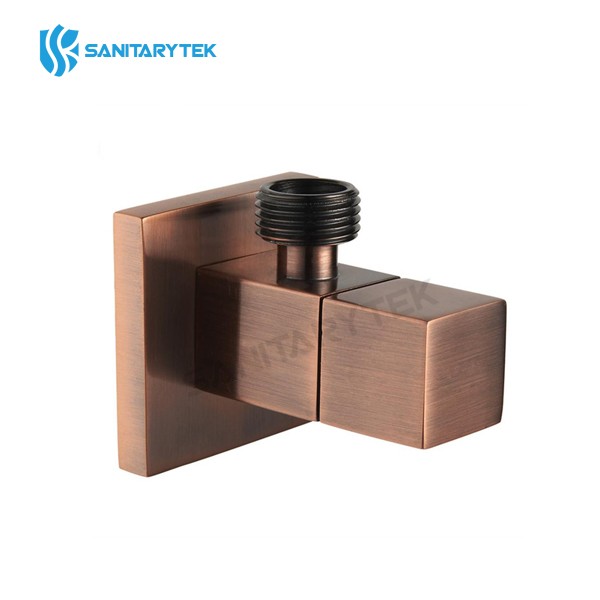

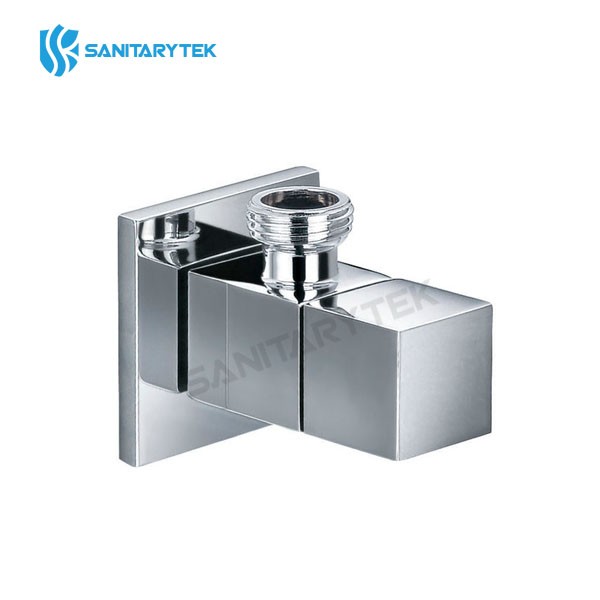

Square angle valve chrome plated with rosette

Chromed Angle Valve (Quick Open)

• Body in brass, polished, chrome plated (optional copper / bronze).
• Ceramic cartridge.
• Media: water.
• Max. working pressure: 1.0 Mpa (10 bar).
• Threaded: ISO228
• Threaded: ISO228
• Size: 1/2"x3/8", 1/2"x1/2"

Code	Size	Color
V22-201	1/2"x3/8"	chrome
V22-201	1/2"x1/2"	chrome
V22-201BR	1/2"x3/8"	bronze
V22-201BR	1/2"x1/2"	bronze
V22-201RC	1/2"x3/8"	copper
V22-201RC	1/2"x1/2"	copper

This manual angle valve offers a reliable shut-off valve and smooth and accurate flow control. The brass body makes this valve durable, reliable, and ready for a long-service life. It is maintenance free and designed for a single flow direction and suitable for a wide variety of liquids and applications, and it is available in chrome / bronnze / copper color.
