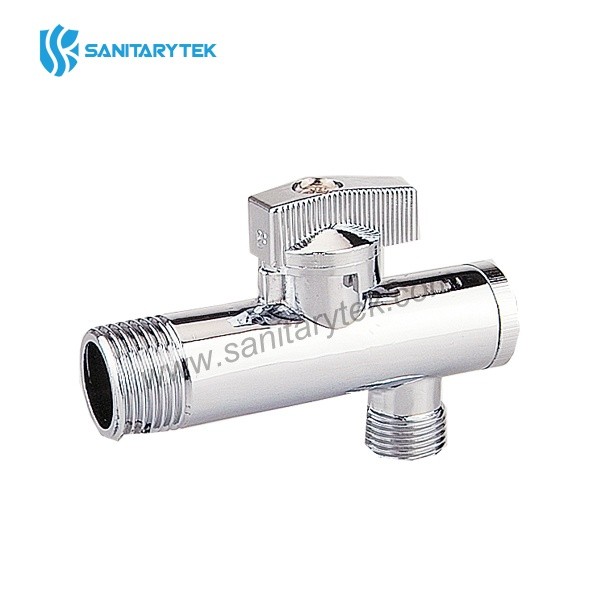

  • Angle ball valve with filter and flange, chrome-plated - Image 1

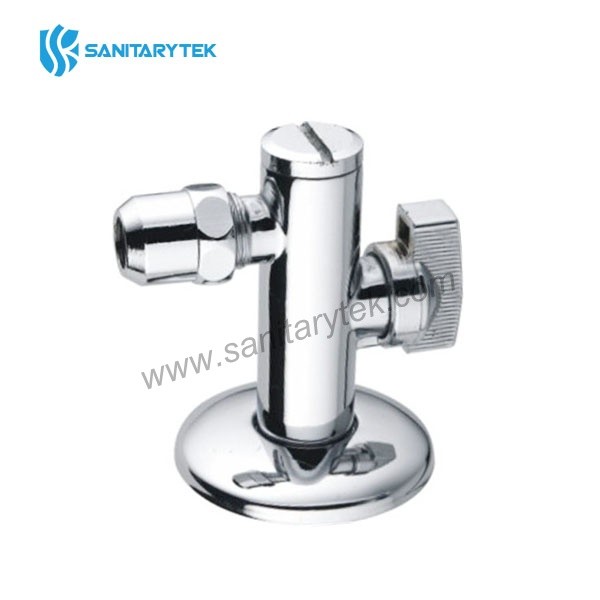

  • Angle ball valve with filter and flange, chrome-plated - Image 2
  • Angle ball valve with filter and flange, chrome-plated - Image 3

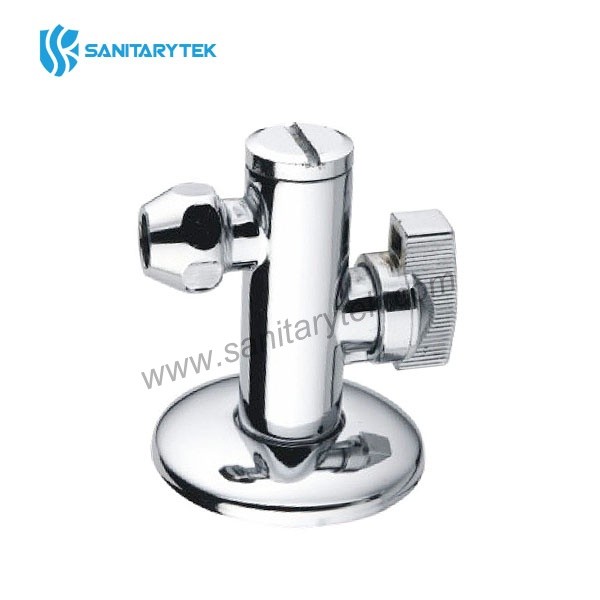

  • Angle ball valve with filter and flange, chrome-plated - Image 4

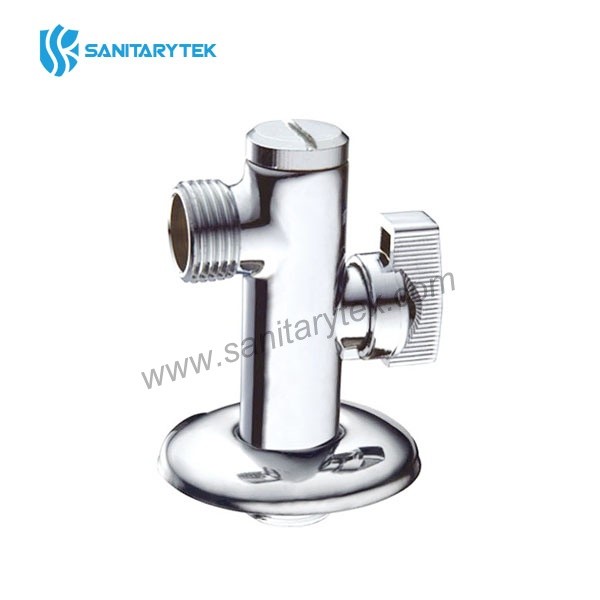

  • Angle ball valve with filter and flange, chrome-plated - Image 5
Angle ball valve with filter and flange, chrome-platedcloseleftright

Angle ball valve with filter and flange, chrome-plated

  • Code:V22-026
  • Material:Brass
  • Finish:Chrome
  • Place of origin:Ningbo,China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

    Angle Ball Valve with Filter and rosette, chrome plated


    • body in brass, polished, chrome plated
    • media: water
    • with stainless steel filter
    • nominal pressure: 1.0 MPa (10 bar)
    • working temperatures: 0°C to +90°C
    • Thread: ISO 228
    • Product available: Angle ball valve with filter code V22-026, Angle valve with filter and nut 3/8"x10 code V22-026B


    Code Size
    V22-026 1/2"x1/2"
    V22-026 1/2"x3/8"
    V22-026 1/2"x3/4"

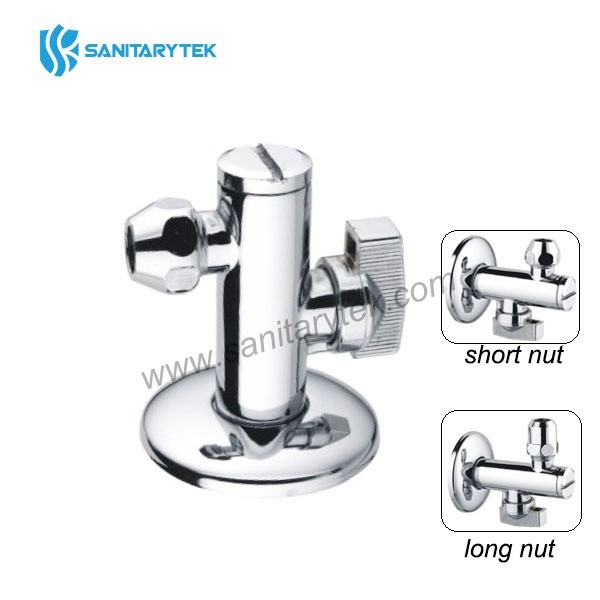

    V22-026B short nut 1/2"x3/8"x10mm
    V22-026B long nut 1/2"x3/8"x10mm
