  • Straight thermostatic set - head, thermostatic valve, return valve - Image 1
Straight thermostatic set - head, thermostatic valve, return valvecloseleftright

Straight thermostatic set - head, thermostatic valve, return valve

  • Code:V21-152
  • Material:brass
  • Finish:nickel plated
  • Place of origin:Ningbo,China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

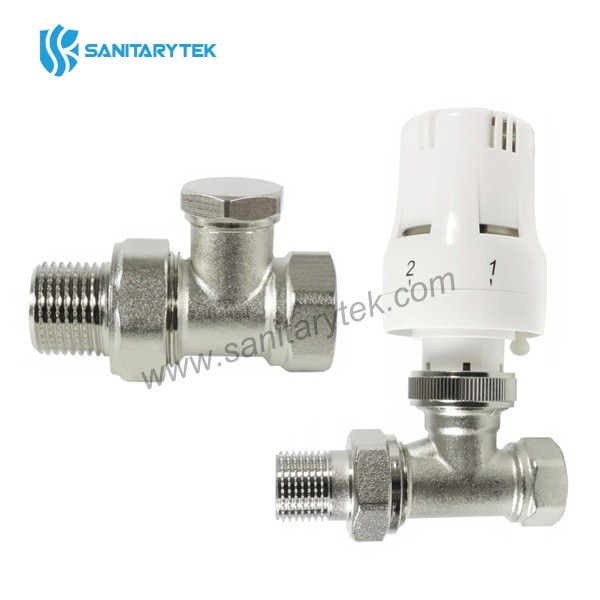

    Straight thermostatic set - thermostatic valve, return valve with thermostatic head

    High-quality thermostatic set for connecting a heating device to the installation and precise temperature setting in the room. Thermostatic sets are available in a straight and angular version. The set includes a thermostatic head, a radiator valve and a lockshield valve.

    • body in brass
    • finishing: nickel plated
    • thermostatic head with M30 x 1.5 connection code V21-027A011
    • thermostatic straight valve code V21-052
    • straight lockshield valve, w/o o-ring code V21-205
    • working temperatures : 0°C to +90°C
    • maximum working pressure: 1.0 Mpa (10 bar)
    • max. ambient temperature: 50°C
    • scale of adjustment: 2 - 5
    • adjustment range: up to 28°C
    • valve connection: 1/2”
    • working medium: water
    • Threads: ISO 228


    Code Size Finishing
    V21-152 1/2"x1/2" nickel plated
