• Straight thermostatic radiator valve for panel radiators
Straight thermostatic radiator valve for panel radiators close left right

Straight thermostatic radiator valve for panel radiators

Code: V21-009

Material: Brass

Finish: nickel plated

Place of origin: Ningbo,China

Product Description

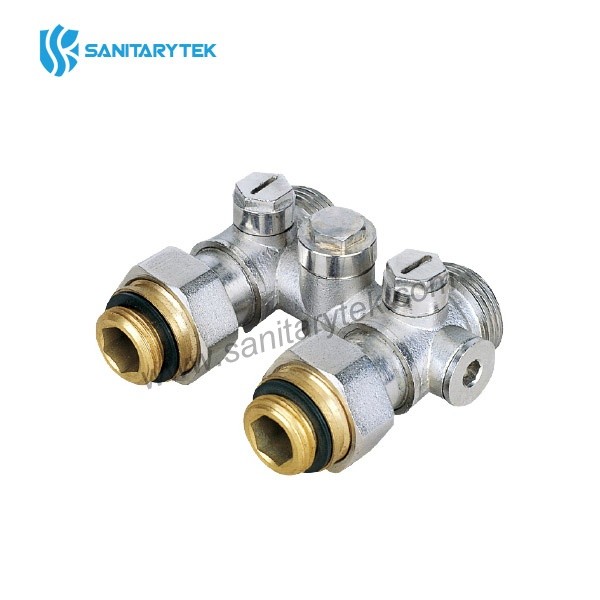

"H" Valves for panel radiators. Straight one-pipe valve - 1/2"M x 3/4"M


H valves are installed on panel style radiators. They are connected to the bottom supply and return ports, providing fluid flow to the upper thermostatic valve built into the radiator.

• H valve for panel radiators with built-in thermostatic valve unit.
• One-pipe straight version (floor connections) with 1/2" F radiator connections.
• With adjustable by-pass.
• Body in nickel-plated brass
• With 1/2"M x 3/4"M adapter
• Working medium: water.
• Working temperatures : 0°C to +90°C.
• Maximum working pressure: 1.0 Mpa (10 bar)
• Threads: ISO 228



Code Size
V21-009 1/2"x3/4"
