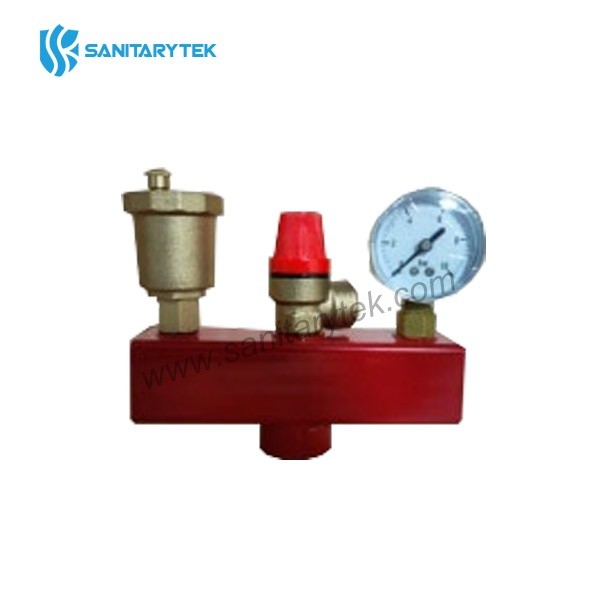

Steel boiler safety group

  • Code:V21-014708
  • Material:steel
  • Color:red
  • Place of origin:zhejiang, China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

    Steel Boiler Safety Group, 157x40x40mm


    The safety group set is a system protecting the installation against dangerous pressure increase caused by water temperature increase and its thermal expansion.

    • Body in steel
    • Epoxy painted steel support in red
    • Expansion vessel: 157x40x40 mm
    • Maximum working temperature: 95 ° C
    • Max. working pressure: 6 bar
    • Safety valve 1/2"x3/4" 3bar
    • Automatic air vent 3/8"
    • Pressure gauge 0-6 bar, G1/4"
    • Thread: ISO228
    Code Size Safety valve
    V21-014708 1" 3 bar
