Steel boiler safety group, galvanised
Code: V21-014708V
Material: steel
Color: red
Place of origin: zhejiang, China
Product Description

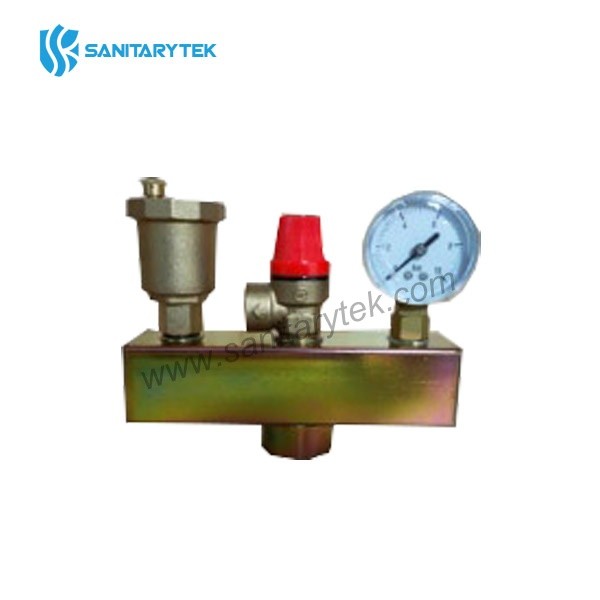

Steel Boiler Safety Group - galvanised, 157x40x40mm
The safety group set is a system protecting the installation against dangerous pressure increase caused by water temperature increase and its thermal expansion.
• steel support in galvanised
• Expansion vessel: 157x40x40 mm
• Maximum working temperature: 95 ° C
• Max. working pressure: 6 bar
• Safety valve 1/2"x3/4" 3bar
• Automatic air vent 3/8"
• Pressure gauge 0-6 bar, G1/4"
• Thread: ISO228
| Code | Size | Safety valve |
| V21-014708V | 1" | 3 bar |
