• Safety group sets for expansion vessel, galvanized
Safety group sets for expansion vessel, galvanized close left right

Safety group sets for expansion vessel, galvanized

Code: V21-014705V

Material: steel

Color: red

Place of origin: zhejiang, China

Product Description

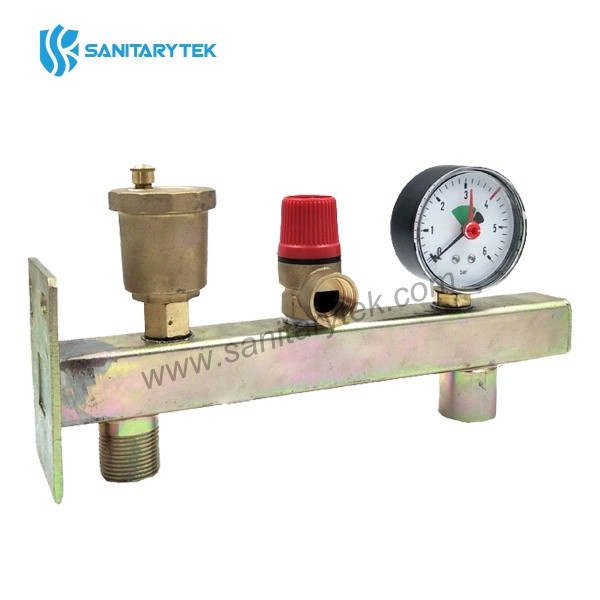

Safety group sets for expansion vessel, steel galvanized, 270x30x30mm


The safety group set is a system protecting the installation against dangerous pressure increase caused by water temperature increase and its thermal expansion.

• Body in steel
• galvanized steel support
• Expansion vessel: 270x30x30 mm
• Maximum working temperature: 95 ° C
• Max. working pressure: 6 bar
• Safety valve 1/2"x3/4" 3bar
• Automatic air vent 1/2"
• Pressure gauge 0-6 bar, Ø63, G1/4" thread with green sector and red needle in the viewer
• Thread: ISO228

Code Size Safety valve
V21-014705V 3/4" 3 bar
