Safety group assembly for hot water storage heaters

  • Code:V21-014601
  • Material:brass
  • Color:chrome
  • Setting:7 bar
  • Place of origin:zhejiang, China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

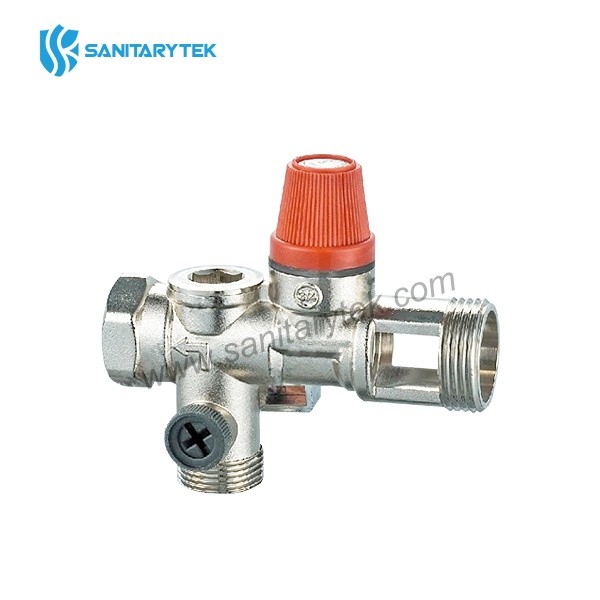

    Safety Group Assembly for Hot Water Storage Heaters, with ball valve and check valve


    Hydraulic safety group for hot water storage heaters, with shut-off valve and controllable check valve. Safety groups are products used in water systems with hot water storage heaters. The main function is to prevent exceptionally high pressurein the storage heaters, to prevent backflow of hot water into the water supply network and shut-off the water network for maintenance of theheater system.

    • Body in brass
    • Finishing: chrome
    • Max. working temperatures: 120°C
    • Max. working pressure: 10 bar
    • Safety relief valve pressure setting: 7 bar
    • Air gap threaded 1"M
    • Thread: ISO228

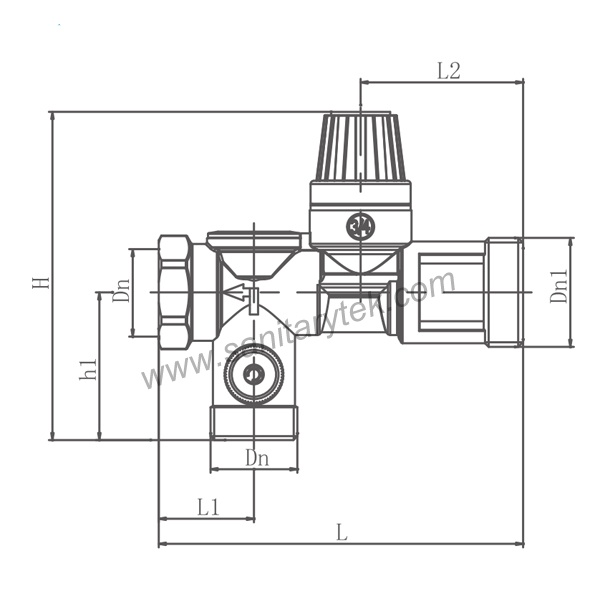

    Code Size (DN) DN1
    V21-014601 3/4" 1"

    Safety Relief Valve
