PPR-AL-PPR Pipe
- Code:F01-106AL
- Material:Polypropylene
- Place of origin:Ningbo, China
- Sample:Support
Save to favoritesView wishlist
Product Description

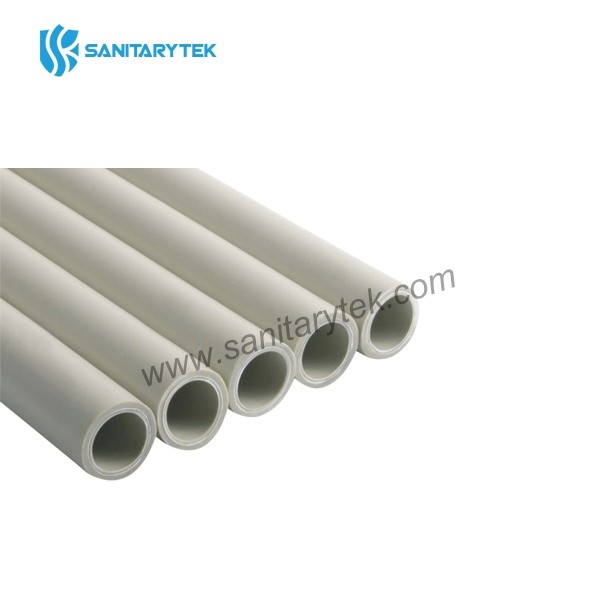

PPR-AL-PPR aluminum plastic composite pipe
PPR-AL-PPR pipe is composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of aluminum core which is longitudinally welded in a butt-welded or overlap-welded way, PPR-AL-PPR pipe is the perfect union of metal and the plastic ones.
| Code | Size | PN | Color |
| F01-106AL | 20x3.0 | PN20 | Green, grey, white |
| F01-106AL | 25x3.3 | PN20 | Green, grey, white |
| F01-106AL | 32x4.0 | PN20 | Green, grey, white |
| F01-106AL | 40x5.0 | PN20 | Green, grey, white |
| F01-106AL | 50x5.5 | PN20 | Green, grey, white |
| F01-106AL | 63x7.0 | PN20 | Green, grey, white |
| -- | -- | -- | -- |
| F01-106AL | 20x3.4 | PN25 | Green, grey, white |
| F01-106AL | 25x4.2 | PN25 | Green, grey, white |
| F01-106AL | 32x5.4 | PN25 | Green, grey, white |
| F01-106AL | 40x6.7 | PN25 | Green, grey, white |
| F01-106AL | 50x8.3 | PN25 | Green, grey, white |
| F01-106AL | 63x10.5 | PN25 | Green, grey, white |
• Hot and cold potable water piping networks in residential and commercial buildings.
• Media: water
• Green / grey / white colors for choice
