  • Pipe clamp with rubber profile and combi nut - Image 1
Pipe clamp with rubber profile and combi nutcloseleftright

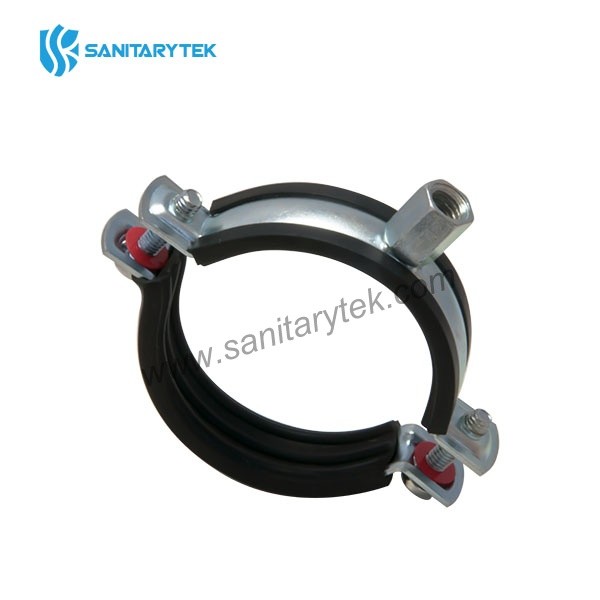

Pipe clamp with rubber profile and combi nut

  • Code:F14-101-EP03
  • Material:steel
  • Place of origin:Ningbo, China
  • Sample:Support
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

    Pipe Clamp with Combi Nut M8/M10 with Rubber Profile


    This type of pipe clamps are used for the vertical and horizontal piping systems to the walls, ceilings and floors by using the hanging products such as rods, nuts, washers, anchors, sliding hinges, sliding guides etc.

    Code Size Nut
    F14-101-EP03 3/8" M8 / M10
    F14-101-EP03 1/2" M8 / M10
    F14-101-EP03 3/4" M8 / M10
    F14-101-EP03 1" M8 / M10
    F14-101-EP03 1.1/4" M8 / M10
    F14-101-EP03 1.1/2" M8 / M10
    F14-101-EP03 2" M8 / M10
    F14-101-EP03 2.1/2" M8 / M10
    F14-101-EP03 3" M8 / M10
    F14-101-EP03 4" M8 / M10
    F14-101-EP03 5" M8 / M10
    F14-101-EP03 6" M8 / M10

    • Hanging type is M8 / M10 combi nut.
    • EPDM rubber provides to reduce the noise and the vibration in the environment with its EPDM rubbered versions. This noise reduction is 15Db according to DIN 4109. EPDM rubber allows to reduce the vibrations and absorb properly.
    • Easy and safe assembly through Philips combi side screws
    • Side screws are protected against loss during assembly with the help of plastic washers
    • Electro galvanized against corrosion protection (Plating thickness 8-10 micron)
    • Material: galvanized steel
