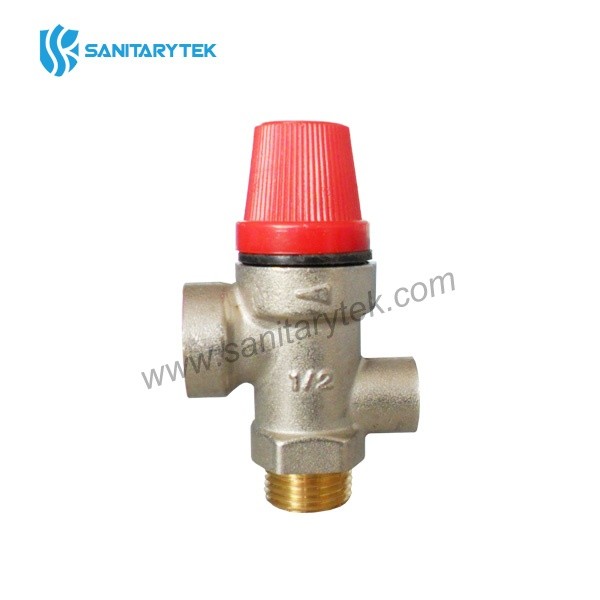

• Nickel plated safety valve M/F with pressure gauge connection - Image 1
Nickel plated safety valve M/F with pressure gauge connectioncloseleftright

Nickel plated safety valve M/F with pressure gauge connection

  • Code:V21-014201
  • Material:brass
  • Color:yellow
  • Place of origin:zhejiang, China
  • MOQ:2000 pcs
    MOQ 2000 pcs
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

    Nickel plated safety valve male/female with 1/4" pressure gauge connection


    Safety valves are typically used for controlling the pressure in heat generators (heaters, solar panels, boilers) in heating systems, plumbing systems and water systems. When the set pressure is reached, the valve opens and vents, impeding the system from reaching dangerous limits for the generator and for the compo- nents in the system itself.

    • body in brass
    • finishing: nickel plated
    • 1/4" connection for pressure gauge
    • max. working temperatures: 110°C
    • maximum working pressure: 10 bar
    • threads: ISO 228

    Code Size Bar
    V21-014201 1/2"MF 3 bar
