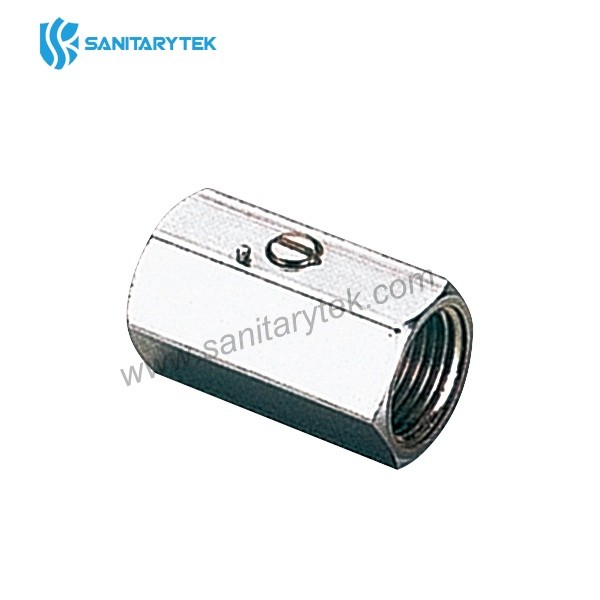

• Mini ball valve with screwdrive slot,F/F
Mini ball valve with screwdrive slot,F/F close left right

Mini ball valve with screwdrive slot,F/F

Code: V20-022

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

F/F Miniball Valve with Screwdriver Slot


Valve suitable for distributing and interrupting fluids that are generally non-corrosive, compatibily with the valve materials. Excellent fields of application are in plant engineering for plumbing, heating and pneumatics and industry, when it is necessary to have a shut-off element with reduced dimensions. It is a reduced-bore valve, and ball seal is provided by two PTFE seats. The operating mechanism seal features an O-Ring with an internally installed stem and anti-ejection system.

• Body in chrome plated brass
• female-female
• Working pressure: 10 bar.
• Working temperatures : 0°C to +90°C.
• Media: water.
• Thread: ISO 228


Code Size
V20-022 1/2"
