  • Mini angular gas ball valve with a bracket, with hose connection - Image 1
Mini angular gas ball valve with a bracket, with hose connectioncloseleftright

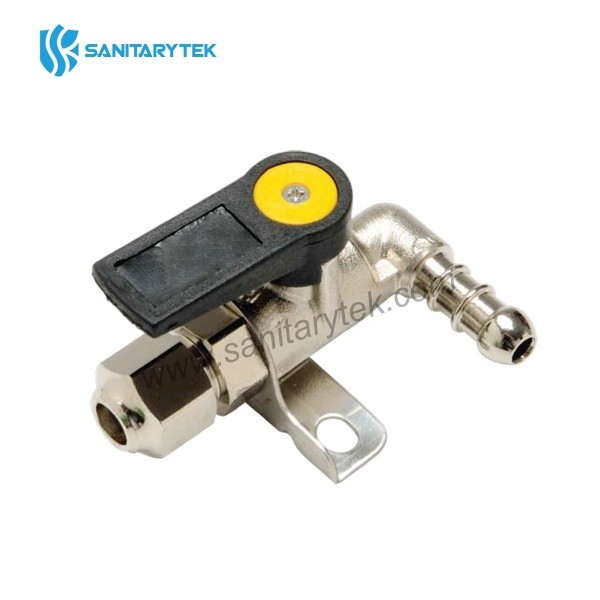

Mini angular gas ball valve with a bracket, with hose connection

  • Code:V25-302
  • Material:brass
  • Finish:nickel plated
  • Place of origin:Ningbo,China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

    Mini Angular Gas Ball Valve - Mini angular gas valve with a bracket

    Mini gas ball valve with integral foot mount. The valve is designed for pipe to pipe applications or hose to copper pipe with an integral foot mount for a secure hold without additional pipe supports.

    • Body in nickel plated forged brass
    • Ball sealing: PTFE
    • 1/4 turn positive shut-off
    • One side – connection to copper pipe by flare
    • Other side – connection to rubber tube (hose connection)
    • Comes with a bracket
    • Max. working pressure: 5 bar


    Code Size (mm) Finish
    V25-302 Flare3/8" x 10mm nickel plated
