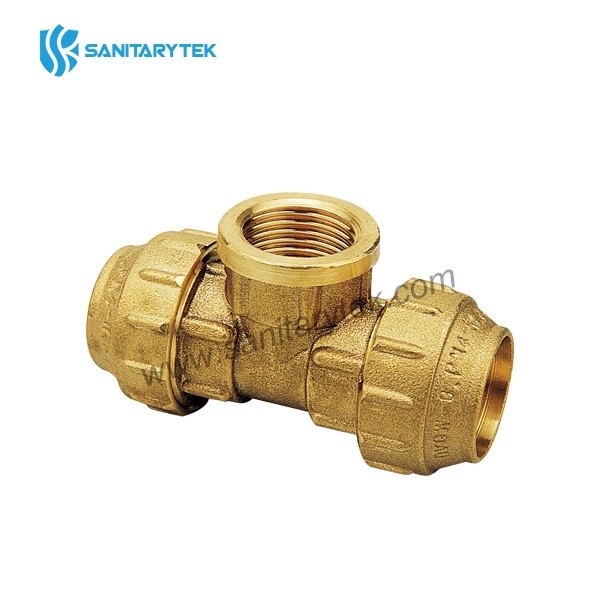

Female tee fitting for polyethylene

Code: F07-302

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

Female tee coupler for polyethylene

Female tee coupler in brass for medium density polyethylene pipe (MDPE) with external compression nut, is a quick connector for polyethylene pipe and threaded accessory. Product range’s dimensions go from diameter 20 mm to 63 mm and thread from ½” until 2”.

Code Size
F07-302 20X1/2"X20
F07-302 25X3/4"X25
F07-302 32X1"X32
F07-302 40X1.1/4"X40
F07-302 50X1.1/2"X50
F07-302 63X2"X63

• Body, nuts and rings made of brass
• O-rings in NBR
• Finishing: yellow brass
• Threaded: ISO 228

Brass Compression Fittings for PE Pipes

For polyethylene pipe Runner sanitary offers this family of brass fittings with external compression nut. A range of accessories for polyethylene tube of high and low density to connect tube with tube (coupling – coupling) and tube to threaded fittings (coupling – threading). A series of fittings for your applications in irrigation systems, for supply networks of potable water and also in conveyance and distribution systems of fuel gases.
The body of the fitting has an external threading (male thread) to which is threaded a clamping nut, achieving the sealing of the union thanks to the O-ring being compressed against the tube, while a gripping ring clamps slightly against it to fix the tube.
The material used is brass for forged parts (nut and body), brass for bar machined parts (clamp and insert) and for the O-ring rubber NBR.

Item Description Materials
1 Body brass
2 O ring EPDM
3 Washer ring brass
4 Compression (C-Ring) brass
5 Nut brass
  • • Suitable for applications in plumbing system and heating installations
  • • Compliant with DIN8076-1 standard
  • • Adaptable pipe: LDPE, MDPE, HDPE
  • • Body and nut made in hot forging brass according to UNE-EN12165
  • • Wide range of sizes from 20mm to 63mm
  • • Working temperature: -10°C to + 80°C
  • • Max pressure PN: 16 bar (PN-16)
  • • Marked for full traceability
  • • Surface treatment options: raw
  • • Fastening threads: ISO228/1
