Double valve for bottom connected radiators, straight close left right

Double valve for bottom connected radiators, straight

Code: V21-010

Material: Brass

Finish: nickel plated

Place of origin: Ningbo,China

Product Description

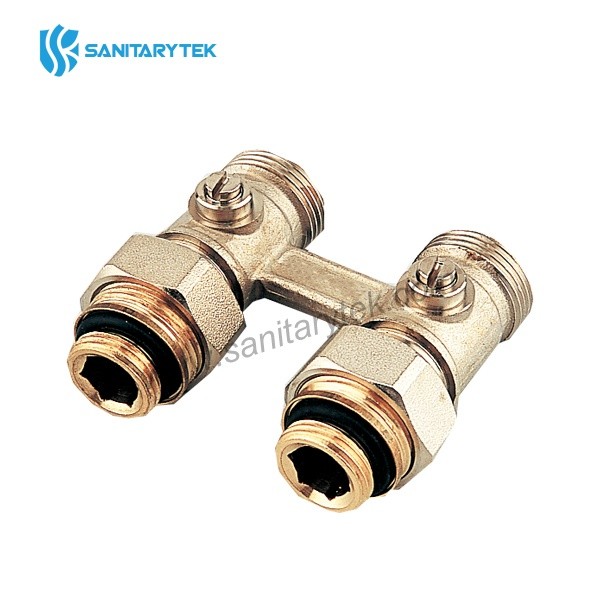

Double Valve for Bottom Connected Radiators, Straight


Twin-entry straight radiator valve that can be used in radiators with bottom water connection. To connect steel radiators with bottom connection in copper or multilayer pipe heating system

• Body in nickel-plated brass
• ball shut-off valves
• Self-sealing adapters with male thread ½" for radiators
• Working medium: water.
• Working temperatures : 0°C to +90°C.
• Maximum working pressure: 1.0 Mpa (10 bar)
• Threads: ISO 228

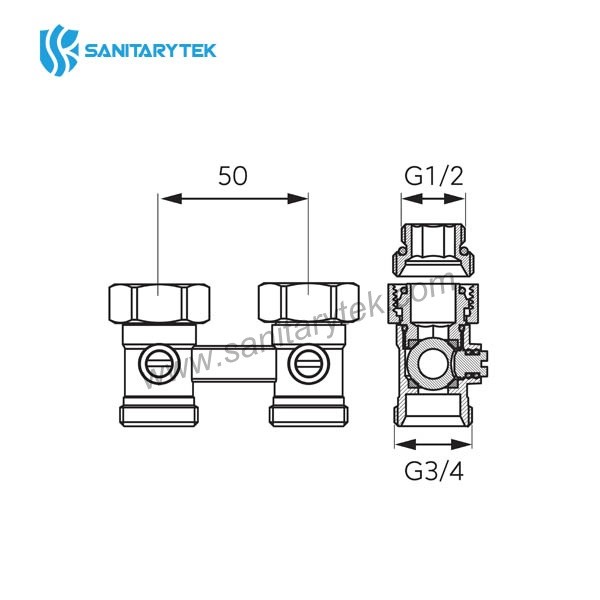

Code Size --
V21-010 1/2"x3/4" with adaptor
V21-010 3/4"M x 3/4"F w/o adaptor
