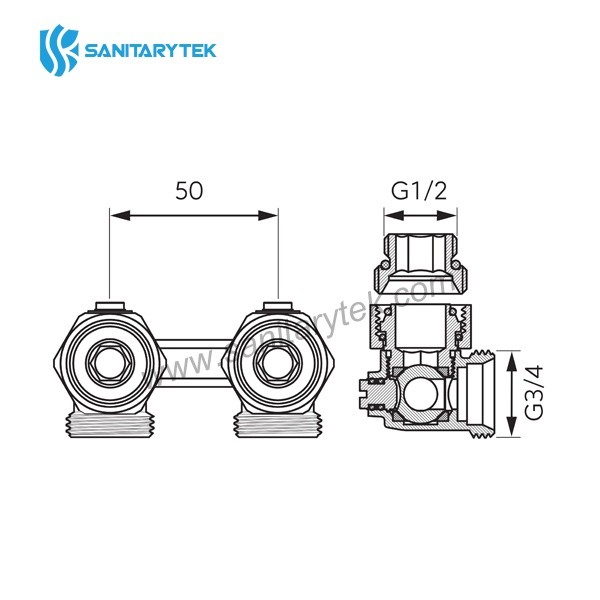

  • Double valve for bottom connected radiators, angle - Image 2
Double valve for bottom connected radiators, anglecloseleftright

Double valve for bottom connected radiators, angle

  • Code:V21-012
  • Material:Brass
  • Finish:nickel plated
  • Place of origin:Ningbo,China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

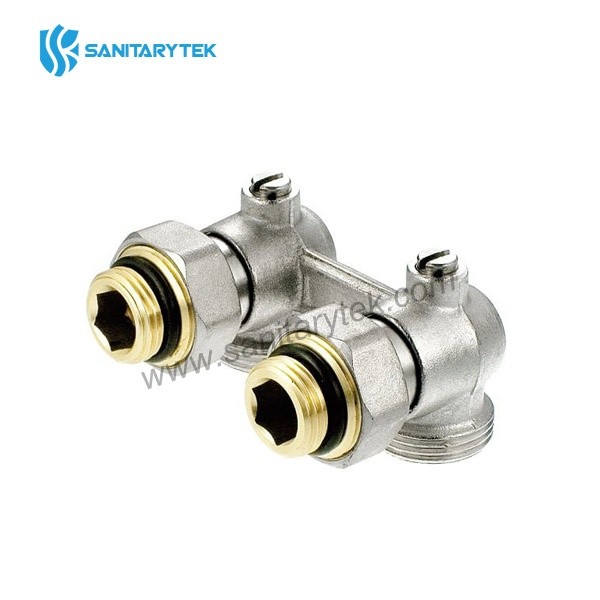

    Double Valve for Bottom Connected Radiators, Angle

    Twin-entry straight radiator valve that can be used in radiators with bottom water connection. To connect steel radiators with bottom connection in copper or multilayer pipe heating system

    • Body in nickel-plated brass
    • ball shut-off valves
    • Self-sealing adapters with male thread ½" for radiators
    • Working medium: water.
    • Working temperatures : 0°C to +90°C.
    • Maximum working pressure: 1.0 Mpa (10 bar)
    • Threads: ISO 228


    Code Size --
    V21-012 1/2"x3/4" with adaptor
    V21-012 3/4"M x 3/4"F w/o adaptor
