    Product Description

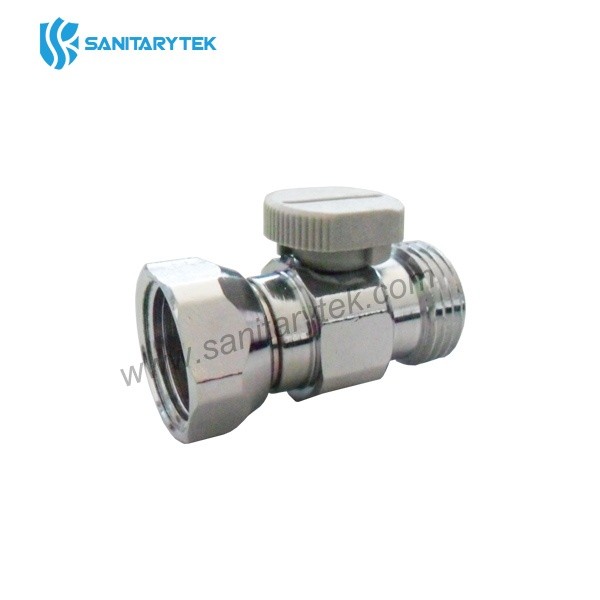

    Mini Ball Valve with Swivel Nut and Washer, M/F


    Valve suitable for distributing and interrupting fluids that are generally non-corrosive, compatibily with the valve materials. Excellent fields of application are in plant engineering for plumbing, heating and pneumatics and industry, when it is necessary to have a shut-off element with reduced dimensions. It is a reduced-bore valve, and ball seal is provided by two PTFE seats. The operating mechanism seal features an O-Ring with an internally installed stem and anti-ejection system.

    • Body in brass, polished, chrome plated.
    • male/female thread
    • Free nut.
    • Working temperatures : 0°C to +80°C.
    • Media: water.
    • Thread: ISO 228
    Code Size
    V20-018200 1/2"
