• Brass mini ball valve for pex-al-pex pipe female (detachable type)
  • Brass mini ball valve for pex-al-pex pipe female (detachable type)
Brass mini ball valve for pex-al-pex pipe female (detachable type) close left right

Brass mini ball valve for pex-al-pex pipe female (detachable type)

Code: V20-018

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

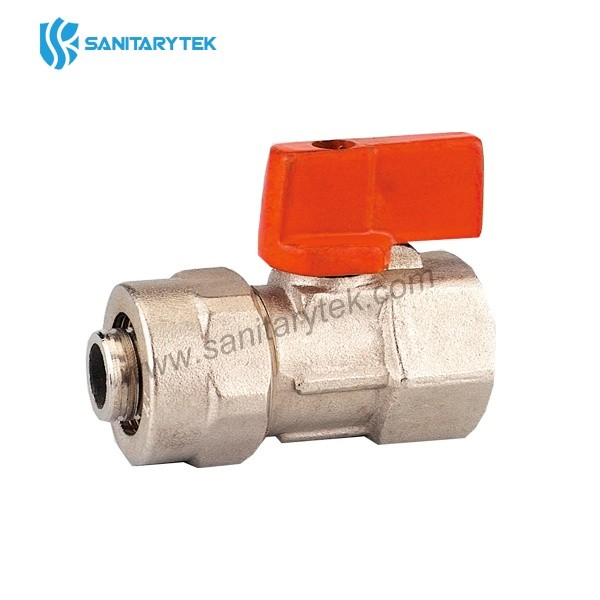

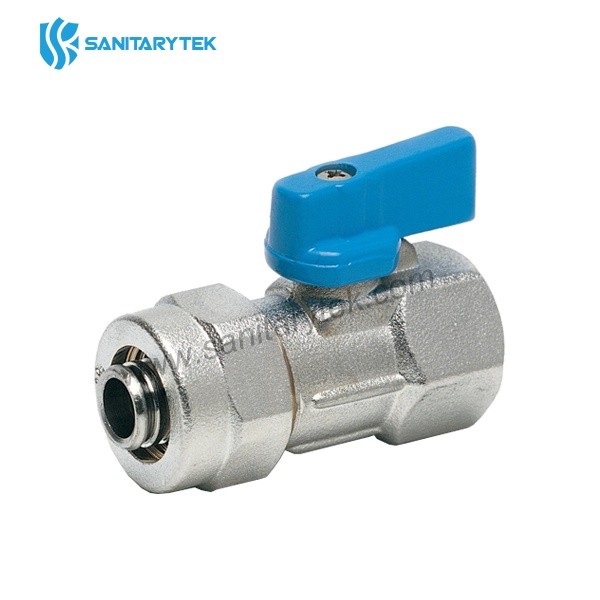

Mini ball valve for Pex-Al-Pex pipe (Removable fitting), Female


• cut-off valve with a multilayer composite pipe connector for water systems.
• Removable fitting, fitting for Pex-al-pex pipe, detachable type.
• Body in nickel-plated brass, sandblasted.
• 1/2" Female connection.
• Lever handle in aluminium (red or blue).
• Maximum working pressure: 1.6 MPa (16 bar).
• Working temperatures : 0°C to +90°C.
• Media: water.
• Thread: ISO 228

Code Size
V20-018 1/2" x 16/2.0
V20-018 1/2" x 18/2.0
