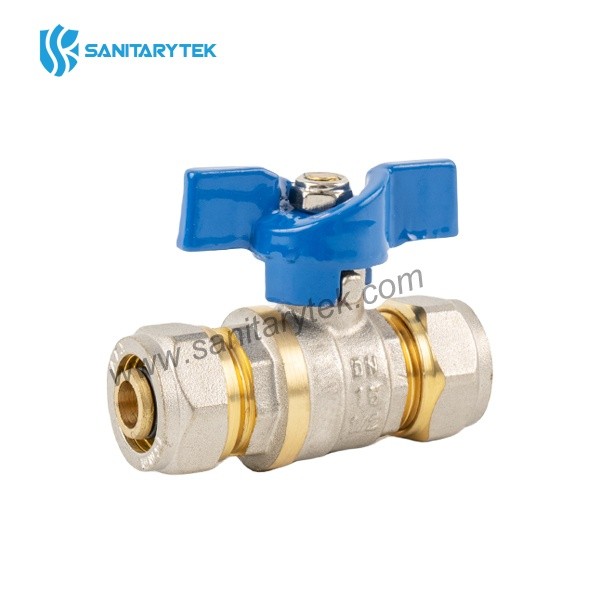

Brass ball valve with blue butterfly handle for multilayer pipe
- Code:V18-216
- Material:brass
- Place of origin:Ningbo, China
- Sample:Support
Save to favoritesView wishlist
Product Description
• Body in nickel plated brass
• compression connection for multilayer pipes with double EPDM O-ring sealing
• with gland and packing nut, PTFE seat
• Aluminium butterfly handle in blue or red
• working pressure: 10 bar
• working temperature : -10°C to +95°C
• working media: water
• Thread: ISO228
• compression connection for multilayer pipes with double EPDM O-ring sealing
• with gland and packing nut, PTFE seat
• Aluminium butterfly handle in blue or red
• working pressure: 10 bar
• working temperature : -10°C to +95°C
• working media: water
• Thread: ISO228
| Code | Size |
| V18-216 | 1/2" x 16/2.0 |
| V18-216 | 3/4" x 20/2.0 |
